System overview

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

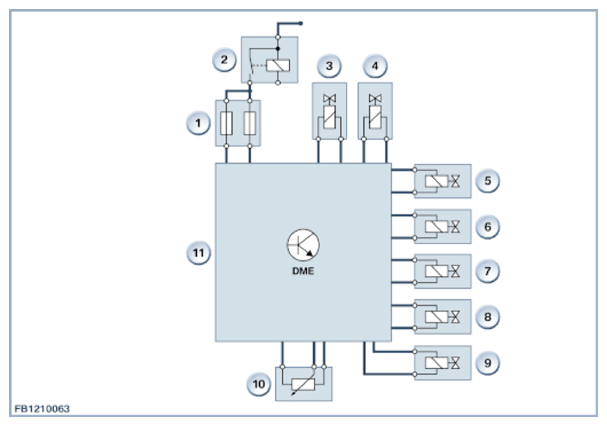

Fig 1: Power Distribution Box (Engine Compartment) - Circuit Diagram
G09909842Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Power distribution box, engine compartment
2 Ignition and injection relay
3 Quantity control valve
4 Solenoid-controlled injection valve for Cylinder No. 1
5 Solenoid-controlled injection valve for Cylinder No. 2
6 Solenoid-controlled injection valve for Cylinder No. 3
7 Solenoid-controlled injection valve for Cylinder No. 4
8 Solenoid-controlled injection valve for Cylinder No. 5
9 Solenoid-controlled injection valve for Cylinder No. 6
10 Rail pressure sensor
11 Digital engine electronics
