Control Module: Service and Repair

24 61 500 - Removing and installing or replacing EGS control unit

Disconnect battery Instructions for Disconnecting and Connecting Battery.

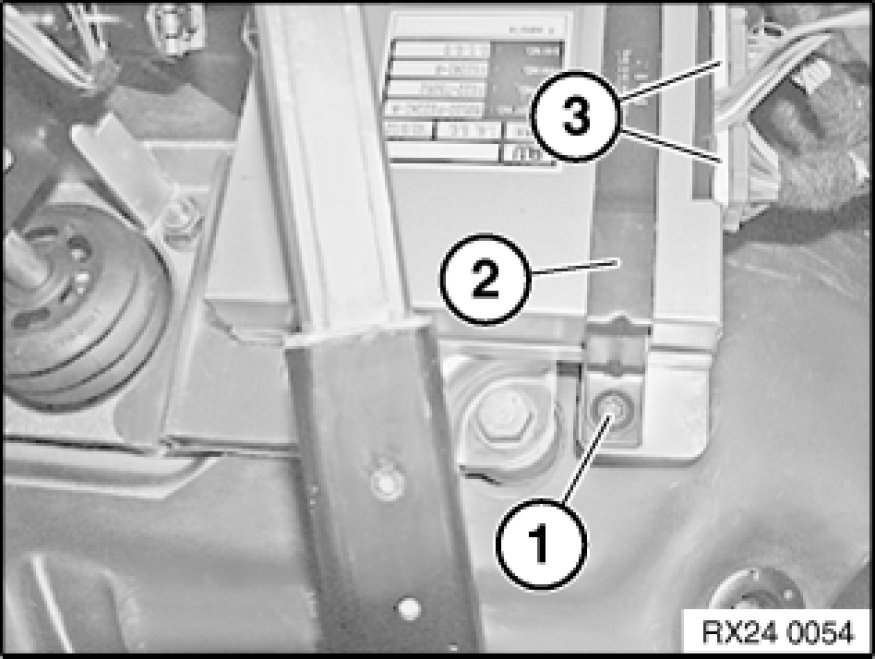

Release bolt (1).
Detach retaining bar (2) from control unit.
Tightening torque 24 61 1AZ [1][2]Control Module, A/T.
Disconnect plug (3) and remove control unit from mounting.

Important!
The adaptation values must be reset after the control unit has been replaced.

Note:
Illustration similar.
