Air Distribution Flaps

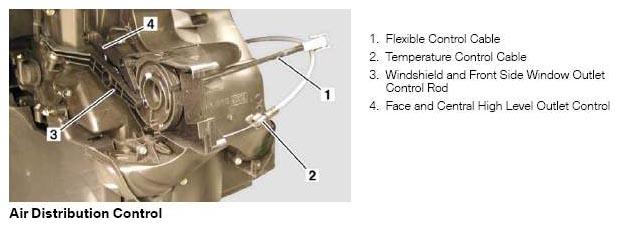

Three distribution flaps are installed to control the flow of air to the footwell, windshield/side windows and the face level outlets. The flaps are operated via a lever mechanism, linked to the air distribution knob on the control panel by a flexible control cable.
Workshop Hint
Prior to attempting to remove the control panel, disconnect the air distribution cable (IHKS) from the rear of the control panel.
