Headlamp Control Module: Service and Repair

Replacing Control Unit For Left Or Right Xenon Headlight


WARNING!
Vehicles with xenon headlights:
Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.

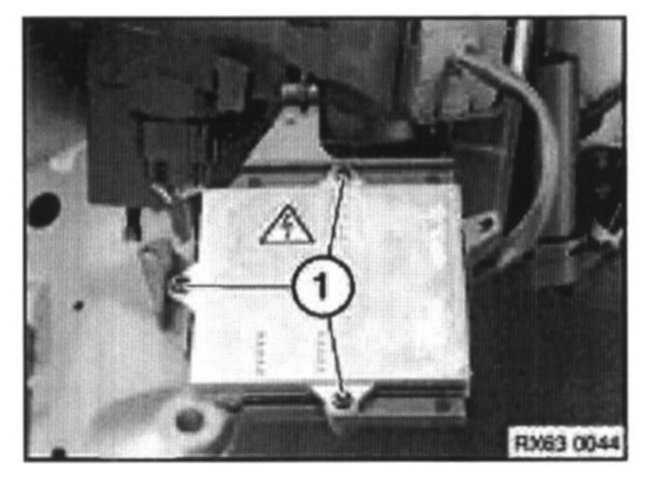

Remove screws (1).

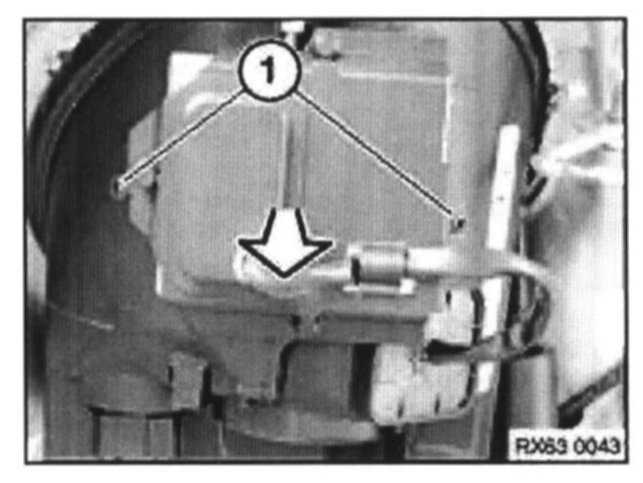

Pivot control unit/cover in direction shown.







Remove screws (1).
Remove control unit from cover.
