Heater Core Temperature Sensor / Switch: Service and Repair

Replacing Temperature Sensor For Heater

Remove front centre console to fascia finisher
Remove radio.
Remove heater controls.
Remove fascia switch module.

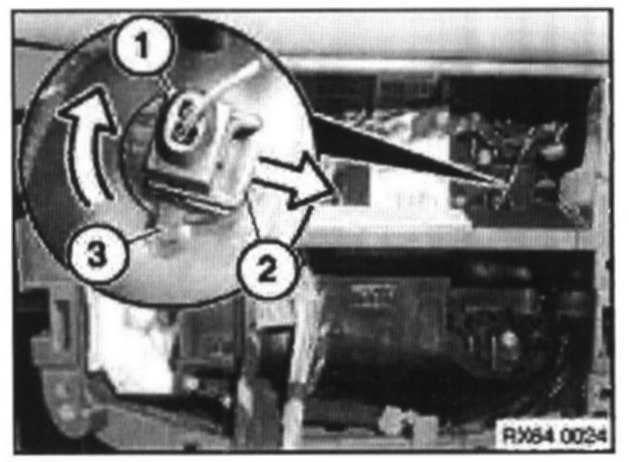

Rotate heater sensor (1) clockwise (approximately 45°) and release.
Release connector retaining clip (2) and disconnect connector

Install hint:
Ensure sensor indent (3) is correctly located.
