Multi-Function Test Cable-MFK#1
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Multi-Function Test Cable-MFK#1
MFK 1 is used to measure:
Voltage - up to 50 Volts
Current - up to 2 Amps
Resistance
Diode Testing
Frequency
Period
Duty Cycle
Pulse Duration
Oscilloscope Measurements

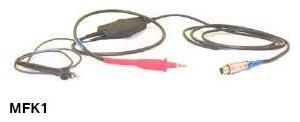

Fig 1: Multi-Function Test Cable-MFK#1
Courtesy of BMW OF NORTH AMERICA, INC.
