Clutch Switch: Service and Repair

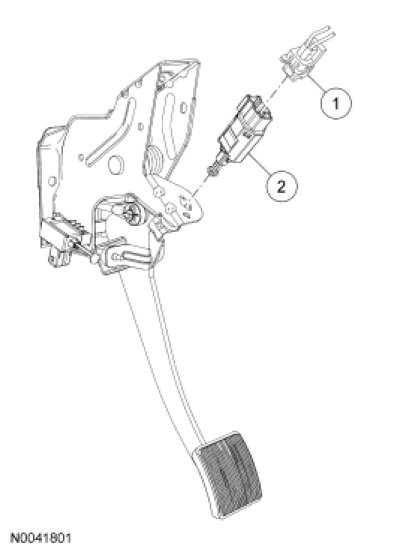

Clutch Pedal Position (CPP) Switch

1. Disconnect the Clutch Pedal Position (CPP) switch electrical connector.

2. Rotate the CPP switch clockwise and remove the CPP switch.

3. To install, reverse the removal procedure.
