Parking Aid Module (PAM): Notes
WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

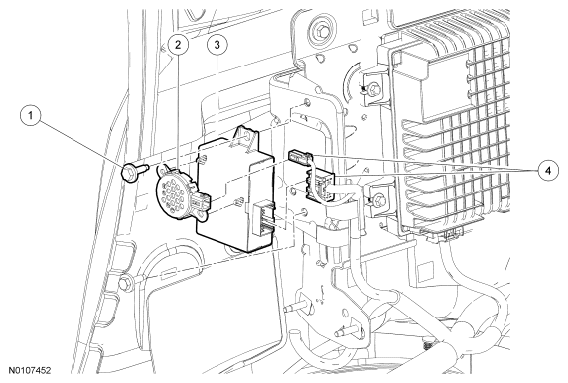

Fig 1: Identifying Parking Aid Module, Parking Aid Module Bolts, Parking Aid Speaker And PAM Electrical Connector
| Item | Part Number | Description |
|---|---|---|
| 1 | W702434-S | Parking Aid Module (PAM) bolts (2 required) |
| 2 | 15K864 | Parking aid speaker |
| 3 | 15K866 | PAM |
| 4 | - | PAM electrical connector(s) (part of 14A005) |
