Transaxle Support Insulator - 3.0L: Notes

SPECIAL TOOL(S)

G07782948
 Lifting Bracket, Engine
303-050 (T70P-6000)
G07782949
 Support Bar, Engine
303-F072
G07782950
 Universal Adapter Brackets
014-0001
MATERIAL

Item Specification
Threadlock and Sealer
TA-25		 WSK-M2G351-A5

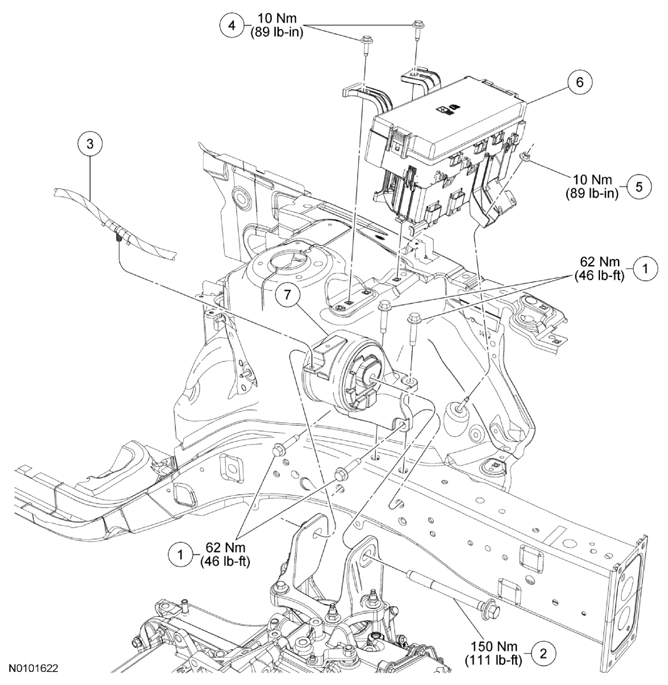

Fig 1: Exploded View Of Transaxle Support Insulator Components With Torque Specifications
G07782951Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W709234 Transaxle support insulator-to-frame rail bolts
2 W711873 Transaxle support insulator through bolt
3 13A506 Wiring harness retainer
4 W702434 Power Distribution Box (PDB) bolts
5 N806543 PDB nut
6 180101 PDB
7 6F020 Transaxle support insulator
