Engine Lubrication




Engine Lubrication Components - Exploded View

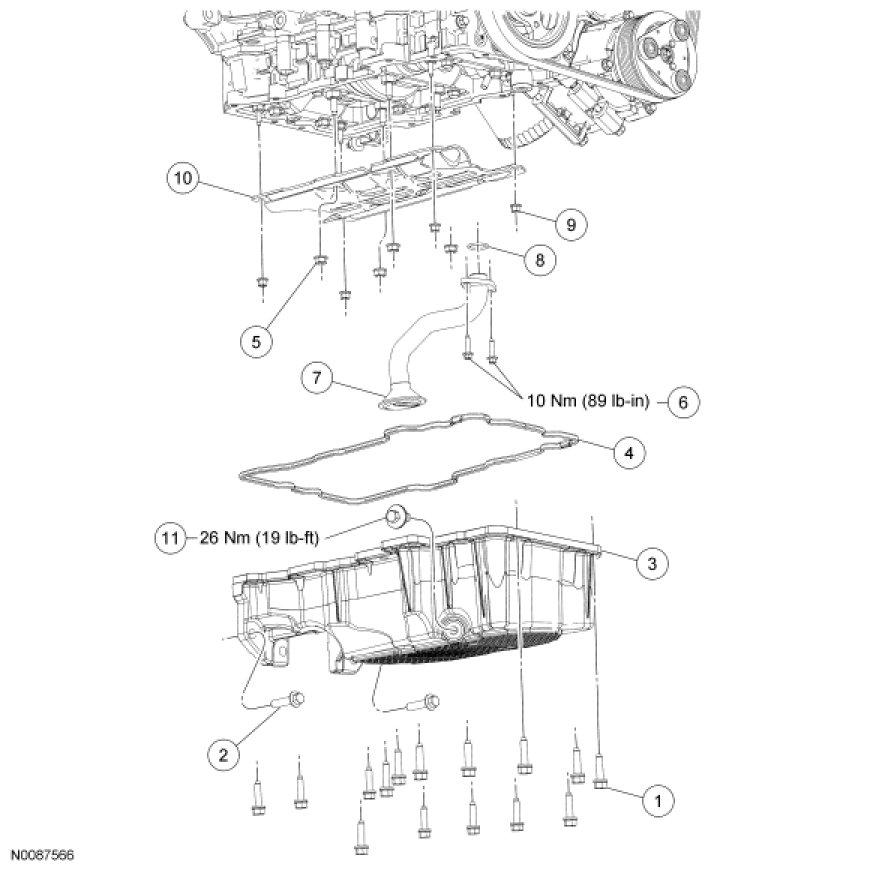

Oil Pan, Oil Pan Baffle and Oil Pump Screen and Pickup Tube

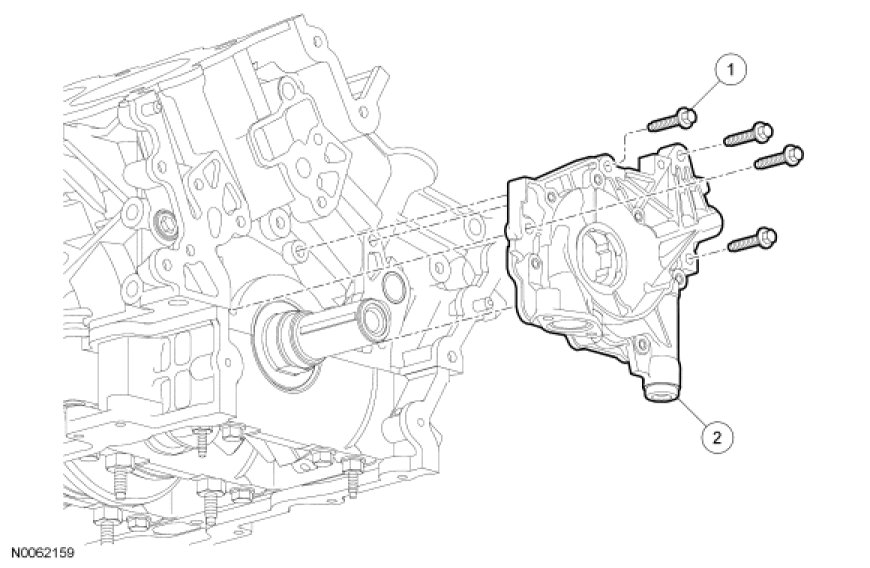

Oil Pump
