Air Filter Element




Intake Air System Components - Exploded View

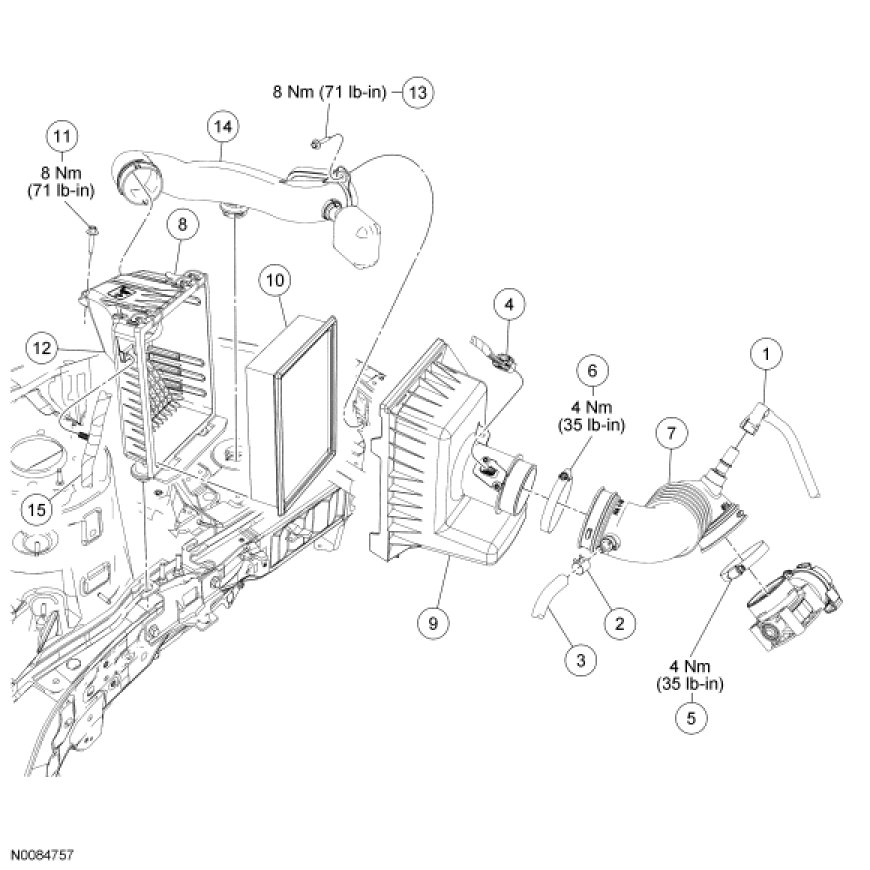

Air Cleaner Assembly, Intake Pipe and Outlet Pipe

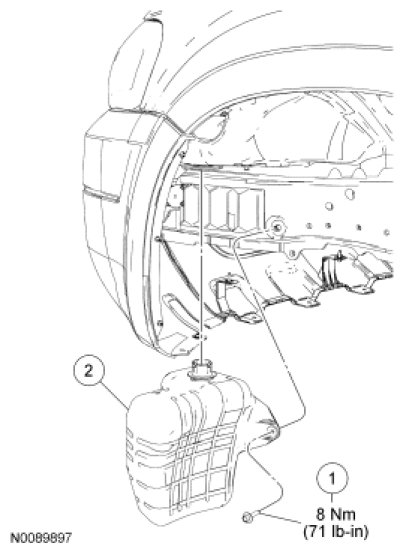

Intake Air Resonator
