Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

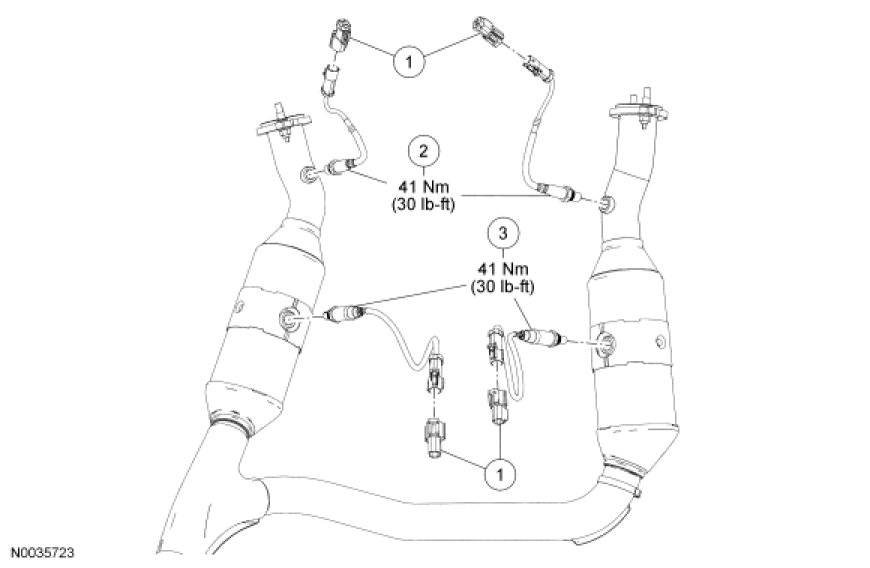

Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View
Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View, 4.6L (3V)
