Intake Air System Components - Exploded View




Intake Air System Components - Exploded View

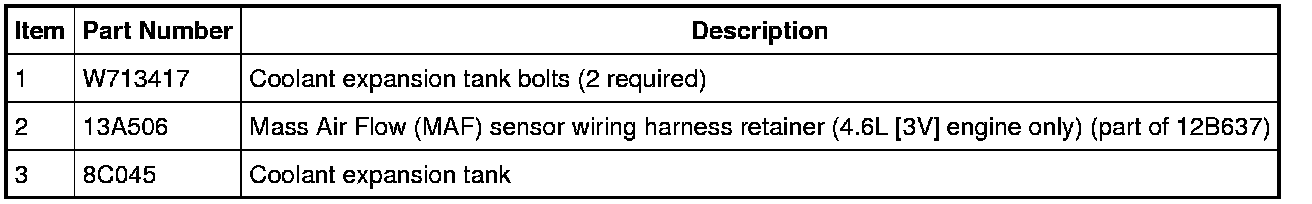

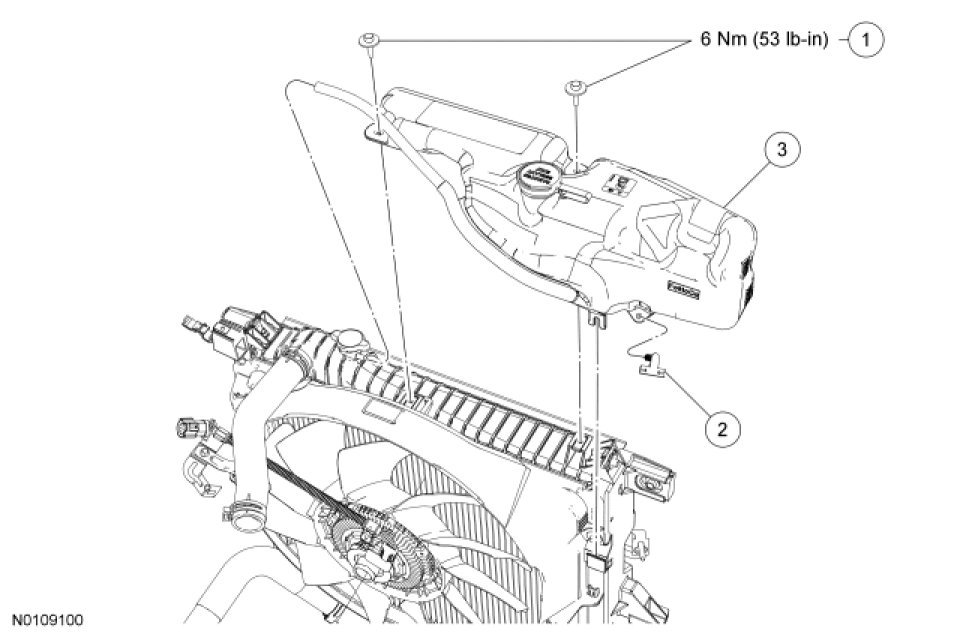

Coolant Expansion Tank

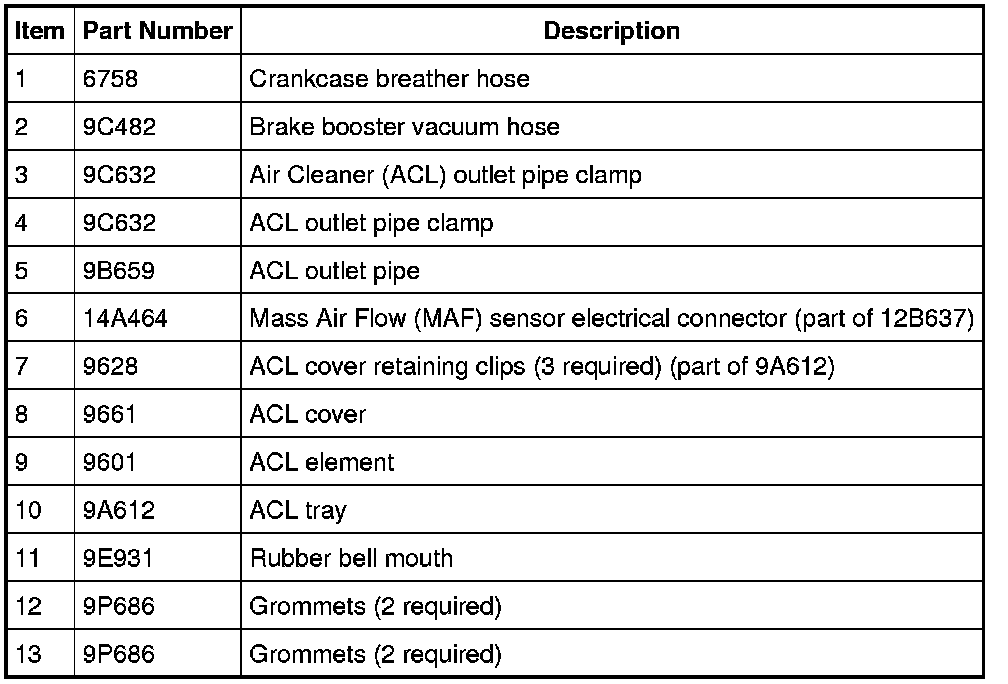

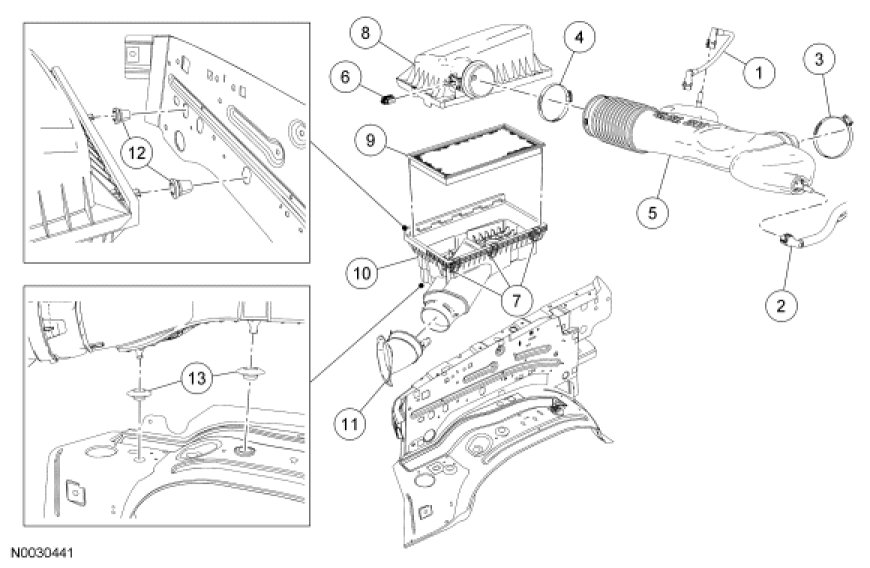

Intake Air System Components (4.0L SOHC)

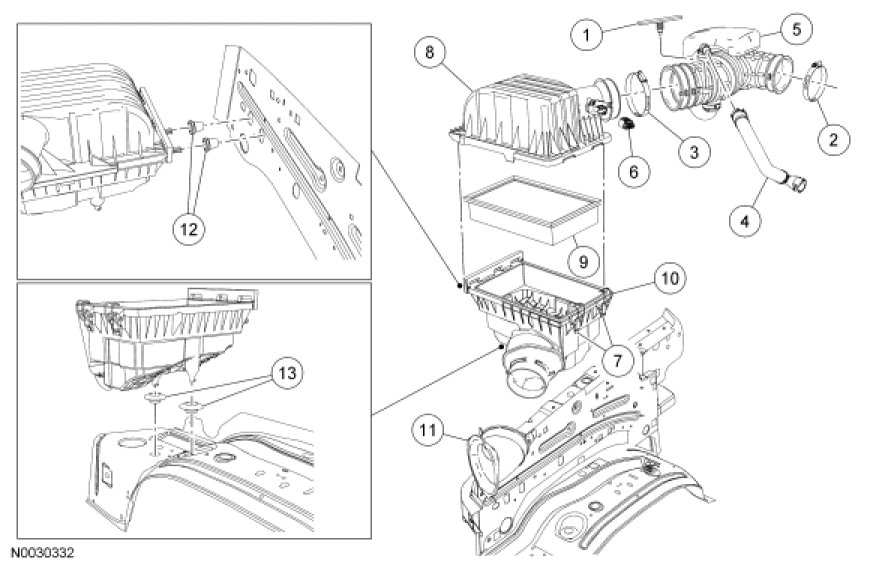

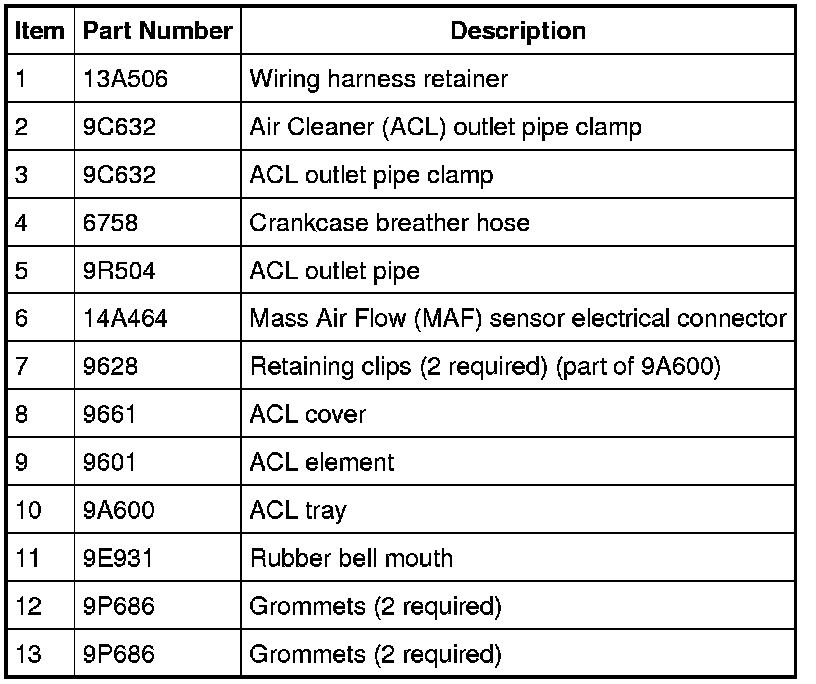

Intake Air System Components - 4.6L (3V)
