Inline Connector End View - C210

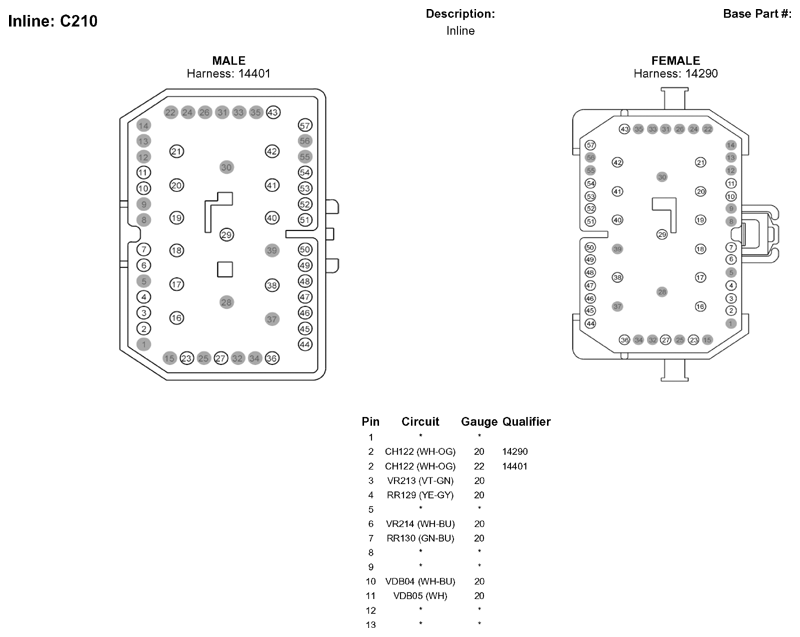

Fig 1: Inline Connector End View (C210) (1 Of 2)
G05789946Courtesy of FORD MOTOR CO.

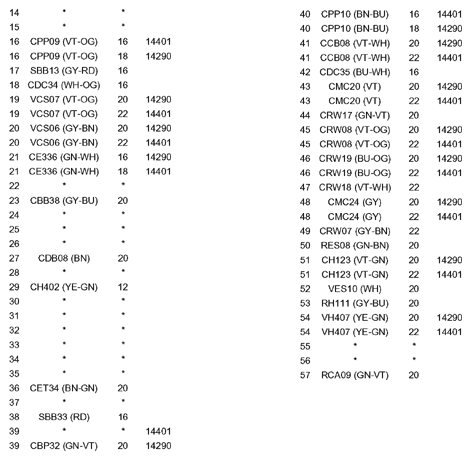

Fig 2: Inline Connector End View (C210) (2 Of 2)
G05789947Courtesy of FORD MOTOR CO.
