Liftgate Switch Connector - C4216
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Liftgate Switch Connector - C4216

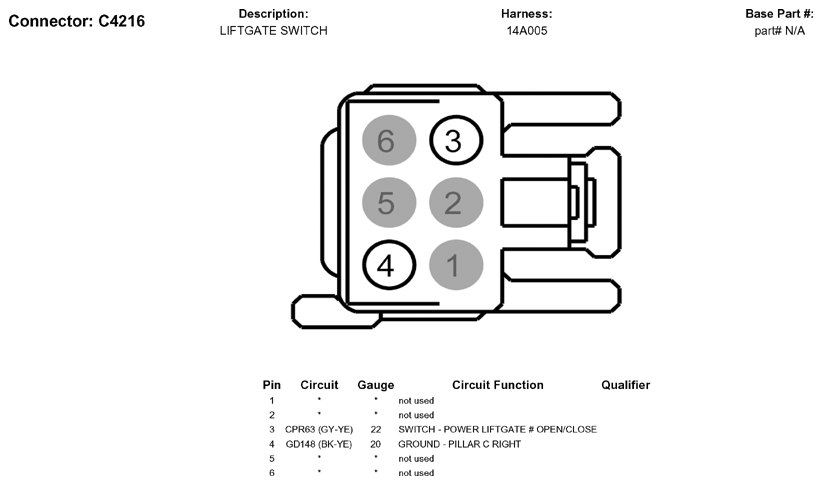

Fig 1: Liftgate Switch Connector End View (C4216)
Courtesy of FORD MOTOR CO.
