Safety Belt Buckle and Pretensioner: Notes

NOTE: LH shown in illustration, RH similar.

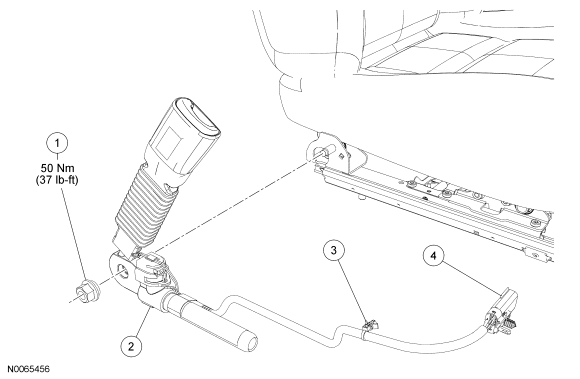

Fig 1: Safety Belt Buckle And Pretensioner With Torque Specification
GF0045544Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Safety belt buckle pretensioner nut
2 610E15 Safety belt buckle pretensioner
3 - Pin-type retainer
4 - Electrical connector (part of 610E15)
