Washer Fluid Level Switch Connector - C138

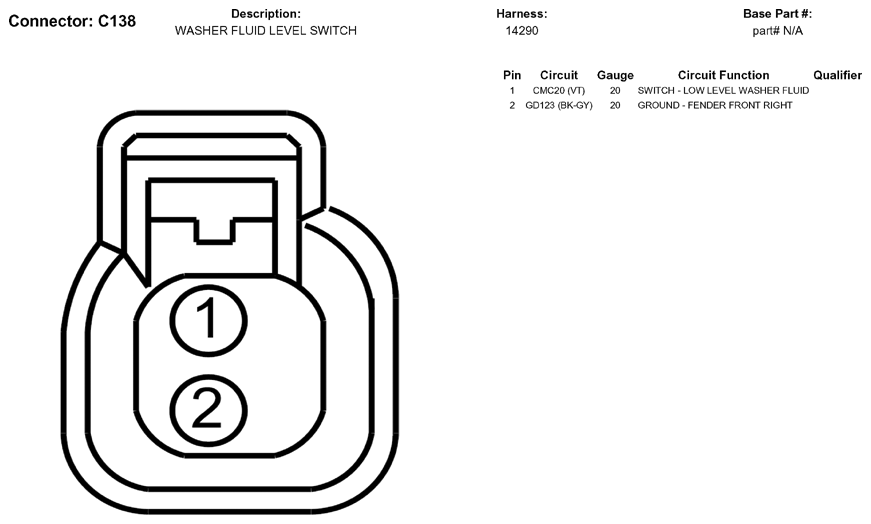

Fig 1: Washer Fluid Level Switch Connector End View (C138)
G05789915Courtesy of FORD MOTOR CO.
