Rear Auxiliary Climate Control Switch Assembly Connector - C990

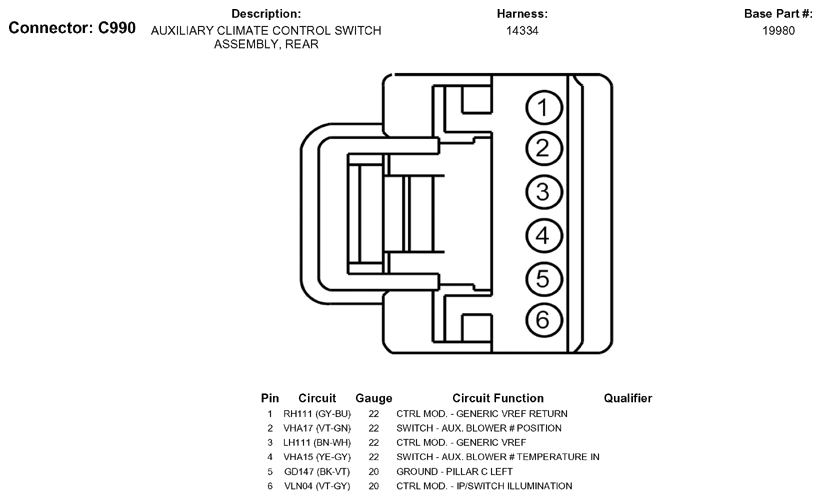

Fig 1: Rear Auxiliary Climate Control Switch Assembly Connector End View (C990)
G05790079Courtesy of FORD MOTOR CO.
