Liftgate Drive Motor Assembly Connector - C4332

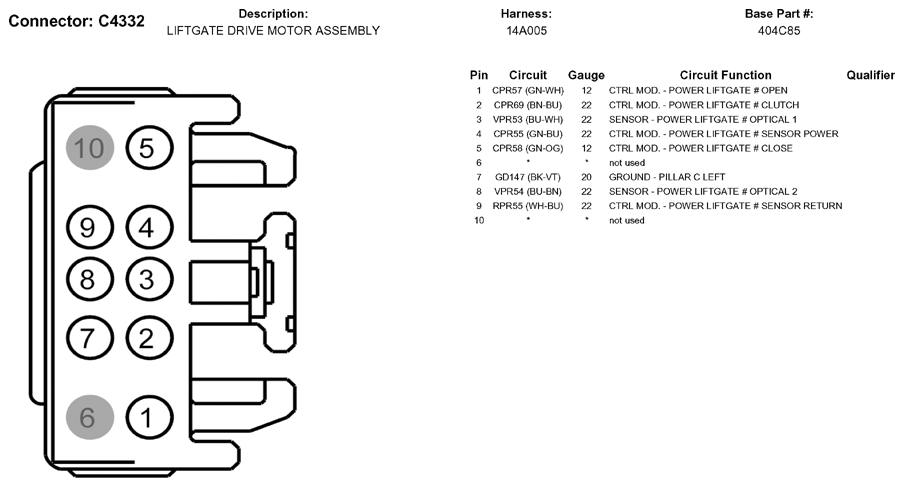

Fig 1: Liftgate Drive Motor Assembly Connector End View (C4332)
G05790207Courtesy of FORD MOTOR CO.
