Active Torque Control Coupling Solenoid Connector - C4347

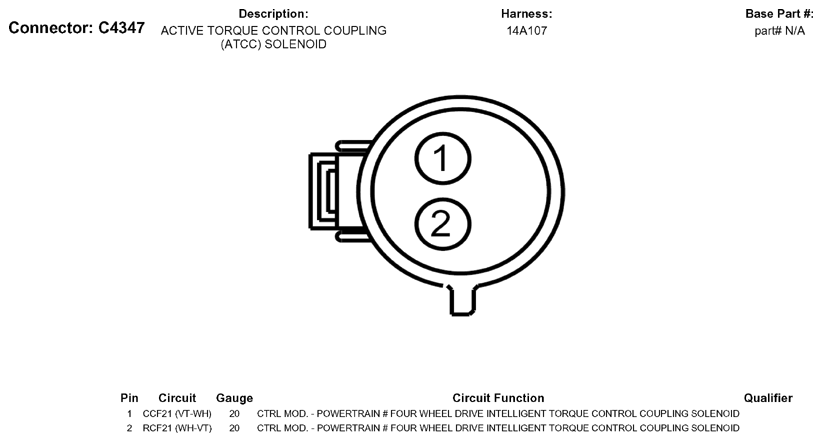

Fig 1: Active Torque Control Coupling Solenoid Connector End View (C4347)
G05790210Courtesy of FORD MOTOR CO.
