Subwoofer Amplifier Connector End View - C466A

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

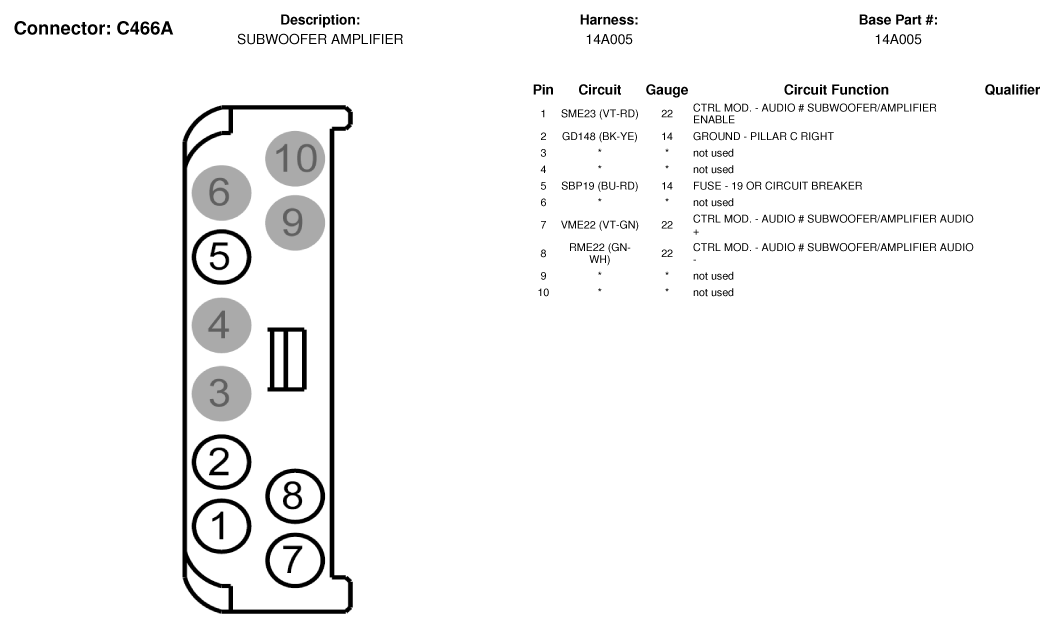

Fig 1: Subwoofer Amplifier Connector End View (C466A)
G07336122Courtesy of FORD MOTOR CO.
