Console - Floor: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

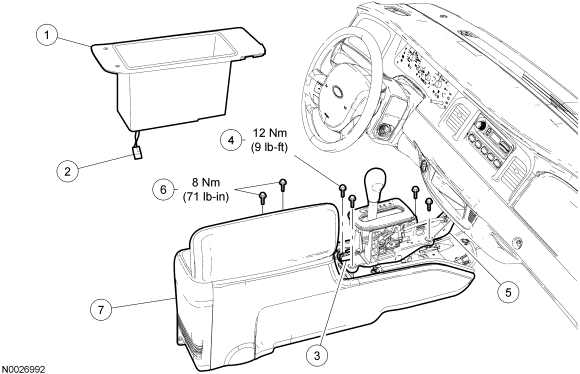

| Item | Part Number | Description |
|---|---|---|
| 1 | 04567 | Floor console storage bin |
| 2 | - | Floor console storage bin power point electrical connector (part of 14B079) |
| 3 | - | Transmission selector lever electrical connector (part of 14B079) |
| 4 | N806769 | Transmission range selector lever assembly bolt (4 required) |
| 5 | 7210 | Transmission range selector lever assembly |
| 6 | 811149 | Floor console bolts (2 required) |
| 7 | 045A36 | Floor console assembly |
