Removal And Installation: Horn: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

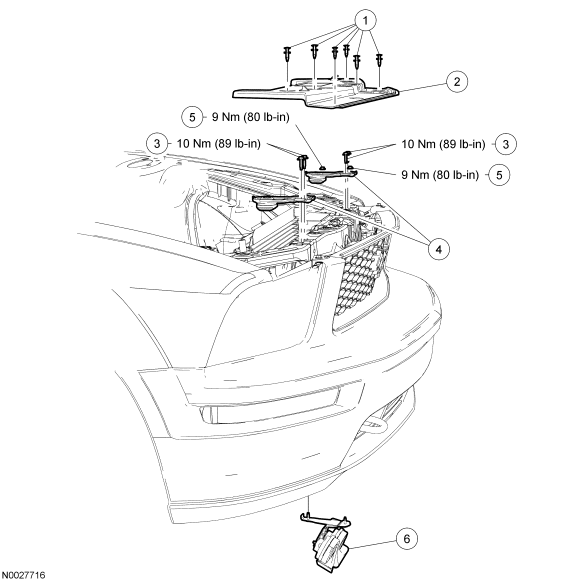

| Item |
Part Number |
Description |
| 1 |
W705436 |
Upper radiator sight shield pin-type retainers (6 required) |
| 2 |
8C291 |
Upper radiator sight shield |
| 3 |
W505424 |
Radiator support bracket bolts (4 required) |
| 4 |
8226 |
Radiator support brackets (2 required) |
| 5 |
W709450 |
Horn bracket nuts (2 required) |
| 6 |
13832 |
Horn |
