Fog Lamp: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

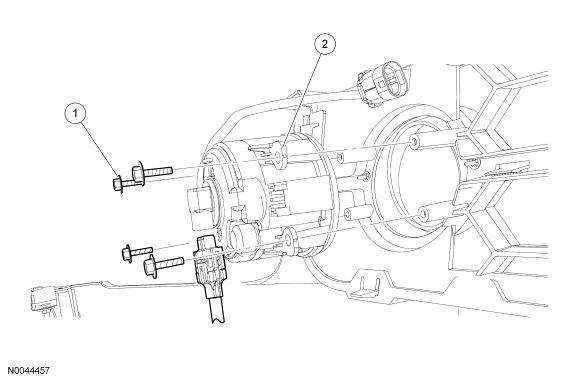

Fig 1: Exploded View Of Fog Lamp - 4.0L Vehicles
GF0016150Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707607S Fog lamp mounting screws (4 required)
2 15200 Fog lamp

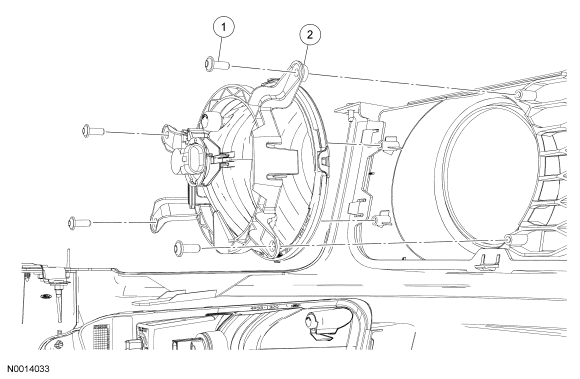

Fig 2: Exploded View Of Fog Lamp - 4.6L Vehicles
GF0016151Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W505974S Fog lamp mounting screws (4 required)
2 15K201/15201 Fog lamp (RH/LH)

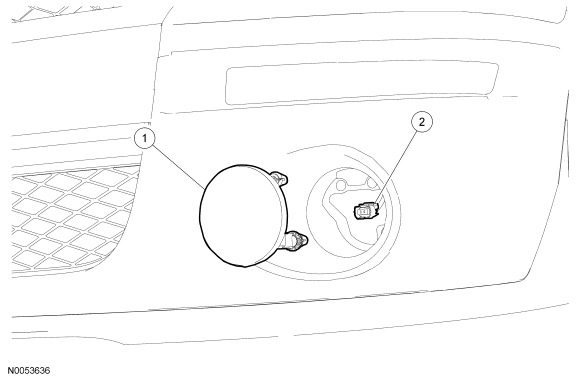

Fig 3: Exploded View Of Fog Lamp - 5.4L Vehicles
GF0001385Courtesy of FORD MOTOR CO.
Item Part Number Description
1 15K201 Fog lamp
2 - Fog lamp electrical connector (part of 14290)
