Panhard Rod: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

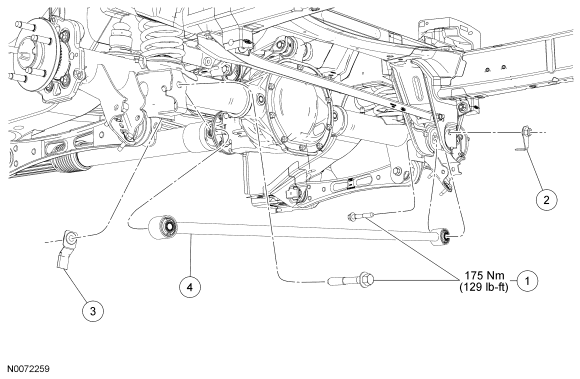

Fig 1: Panhard Rod
GF0046413Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W704886 Panhard rod bolts (2 required)
2 W710022 Panhard rod flagnut (RH)
3 W710689 Panhard rod flagnut (LH)
4 4264 Panhard rod
