Lower Arm: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

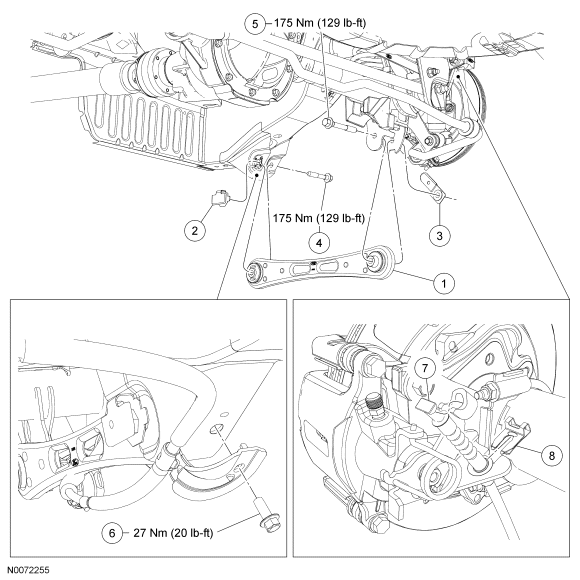

| Item |
Part Number |
Description |
| 1 |
5538 |
Lower arm |
| 2 |
W710089 |
Lower arm front nut |
| 3 |
W704991 |
Lower arm rear nut |
| 4 |
W704886 |
Lower arm front bolt |
| 5 |
W704888 |
Lower arm rear bolt |
| 6 |
W505263 |
Parking brake cable bracket bolt |
| 7 |
2A635 RH/ 2A823 LH |
Parking brake cable |
| 8 |
2860 |
Parking brake cable retaining clip |
