Inline Connector End View - C3049

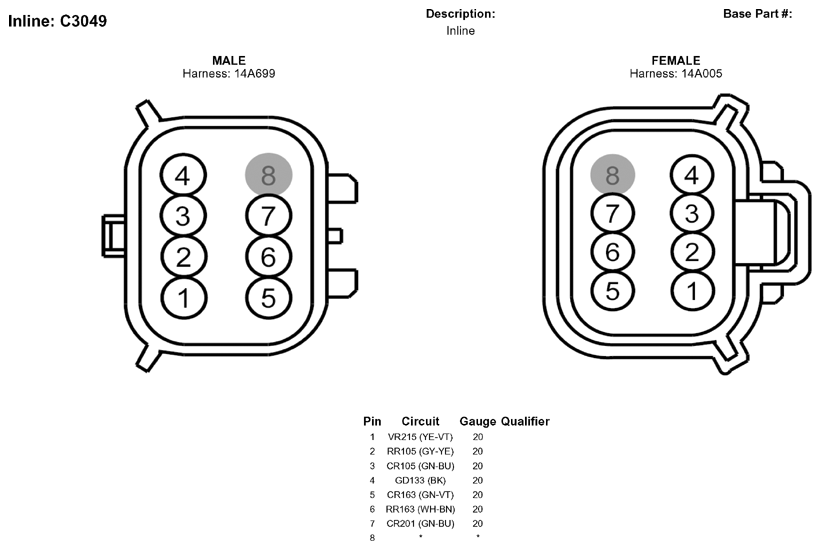

Fig 1: Inline Connector End View (C3049)
Courtesy of FORD MOTOR CO.
