FF - Power Steering Pressure (PSP) Switch
PINPOINT TEST FF: POWER STEERING PRESSURE (PSP) SWITCH

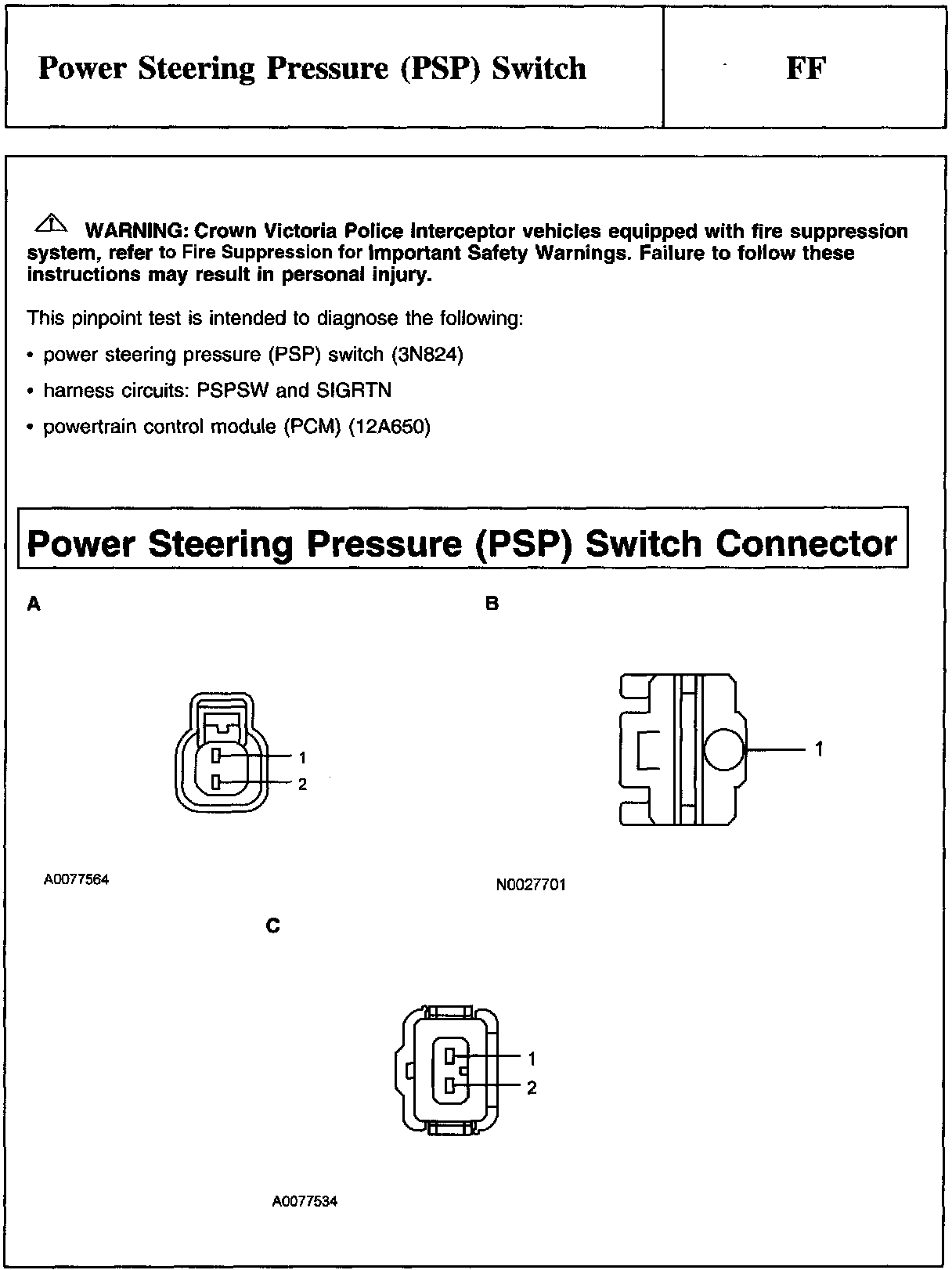

WARNING And Power Steering Pressure Switch Connector:

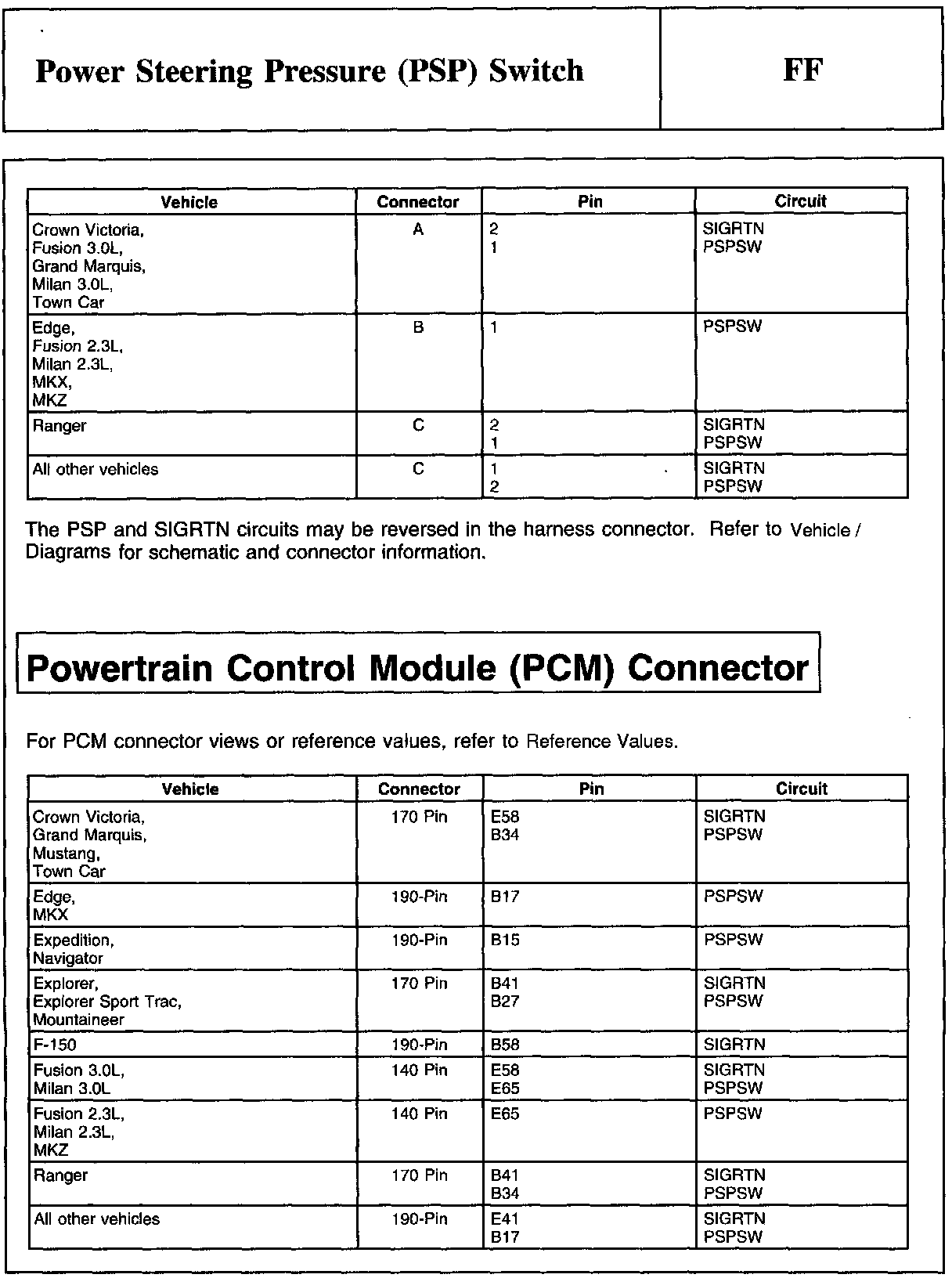

Powertrain Control Module Connector:

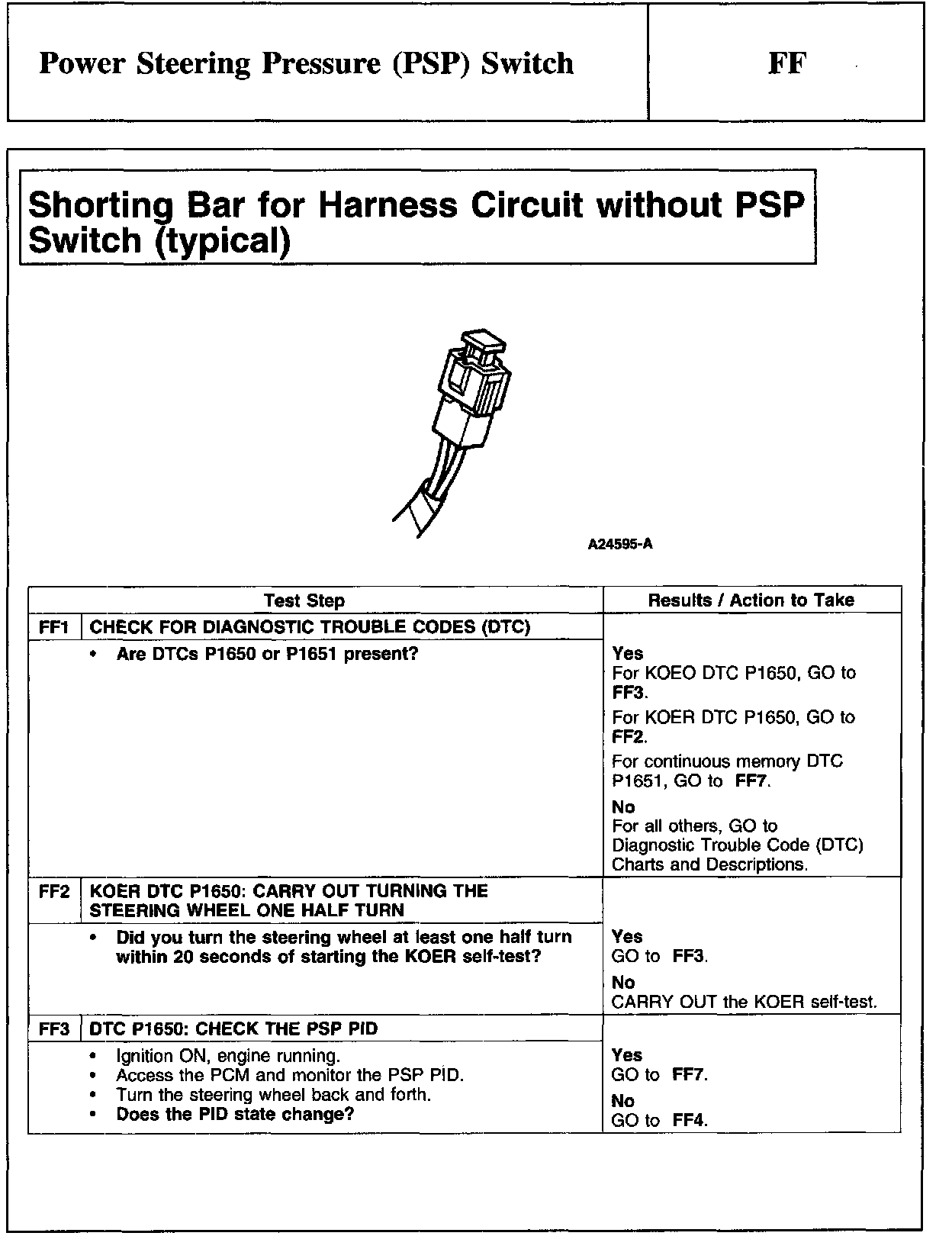

FF1-FF3:

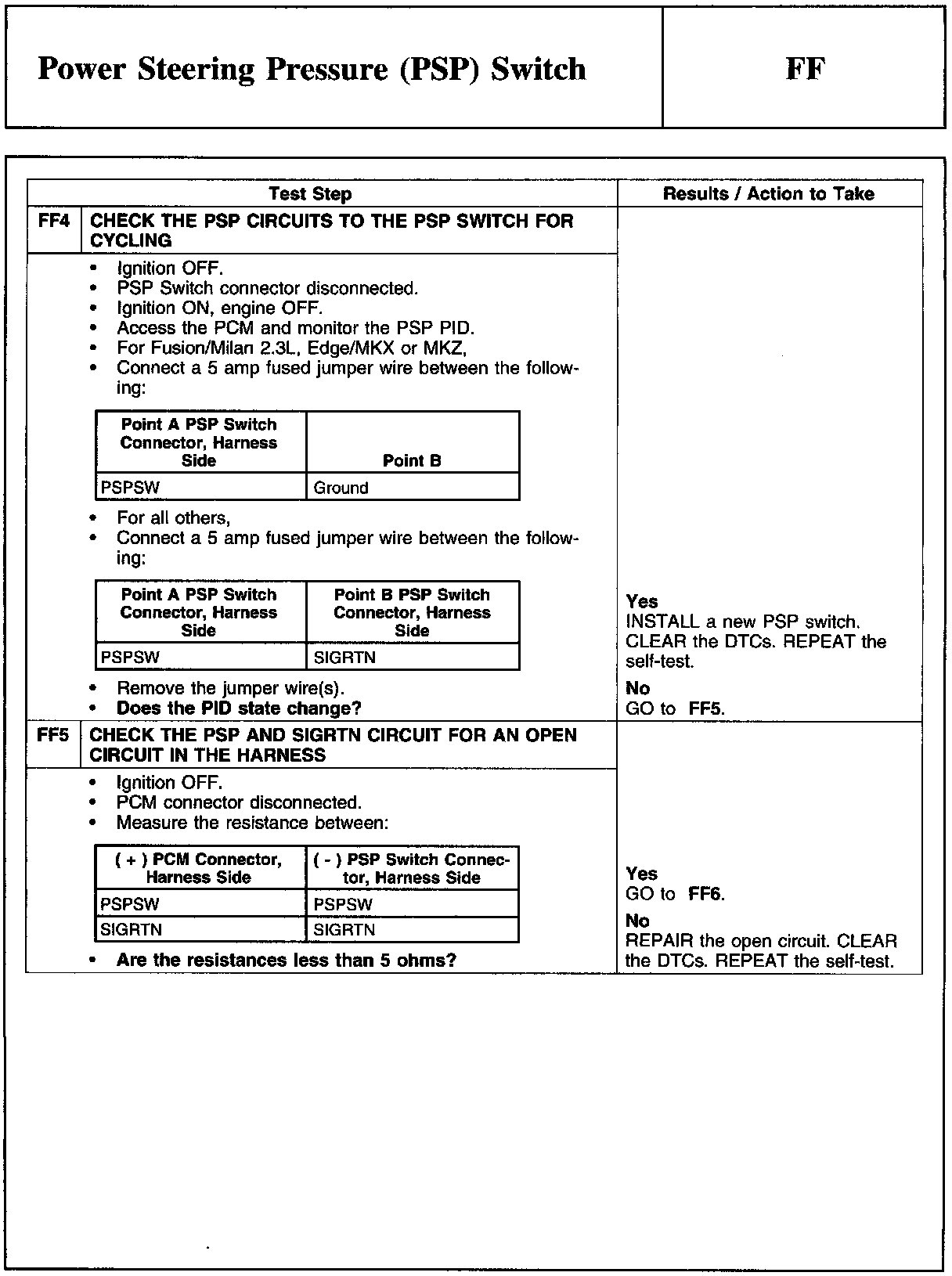

FF4-FF5:

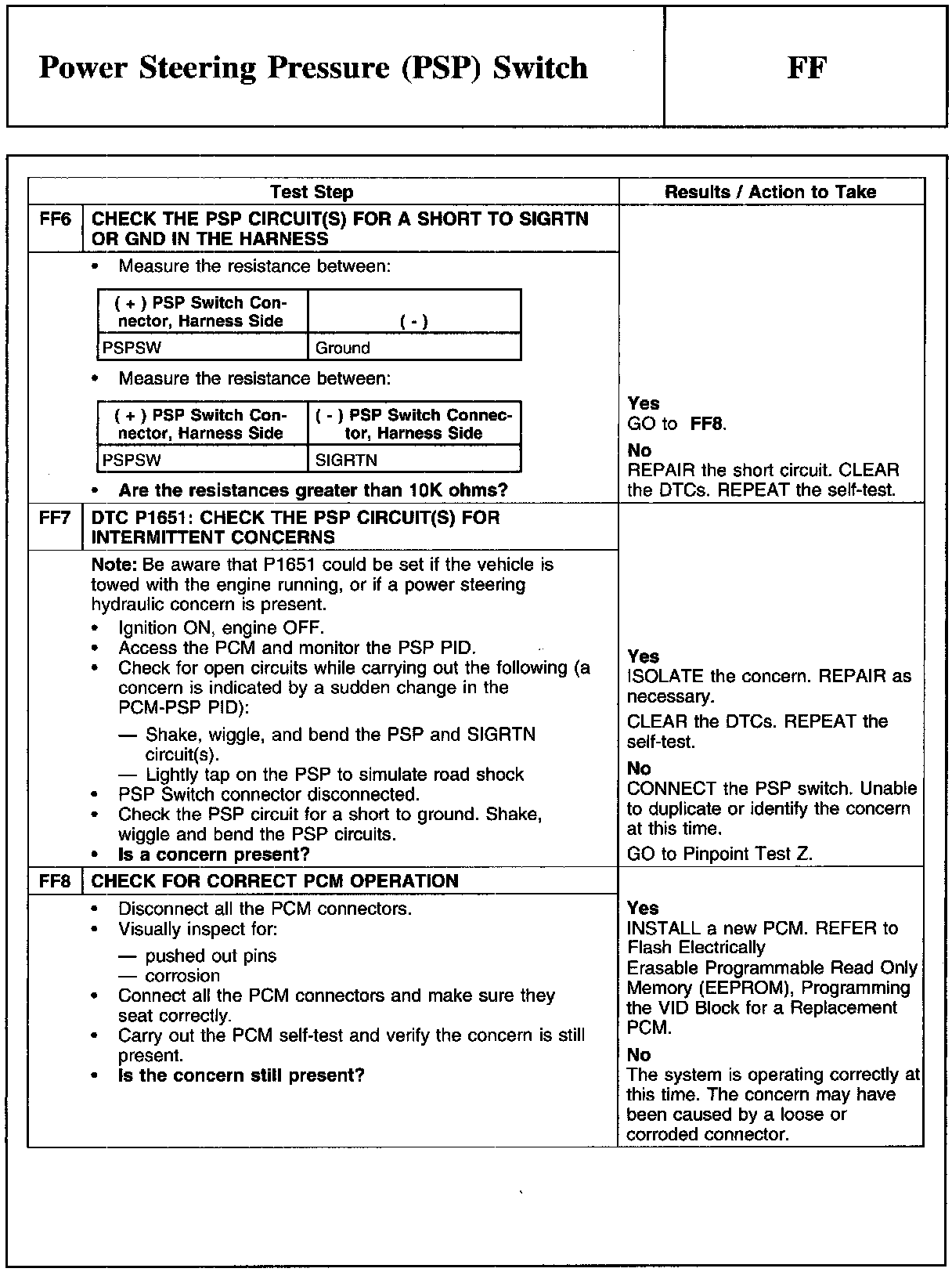

FF6-FF8:
