Seat - Third Row

Seat - Third Row

Removal and Installation









1. Remove the left and right side rear quarter trim panels.

2. NOTE: 50/50 percent seat shown, bench seat similar.

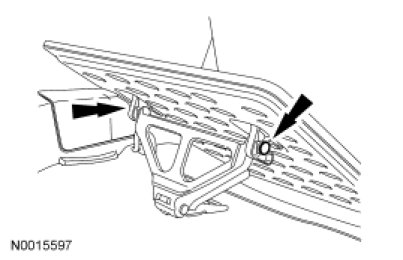

Remove the 2 load floor supports (1 shown) from the load floor panel(s).

- Push the load floor support back and lift up on the load floor to disengage.

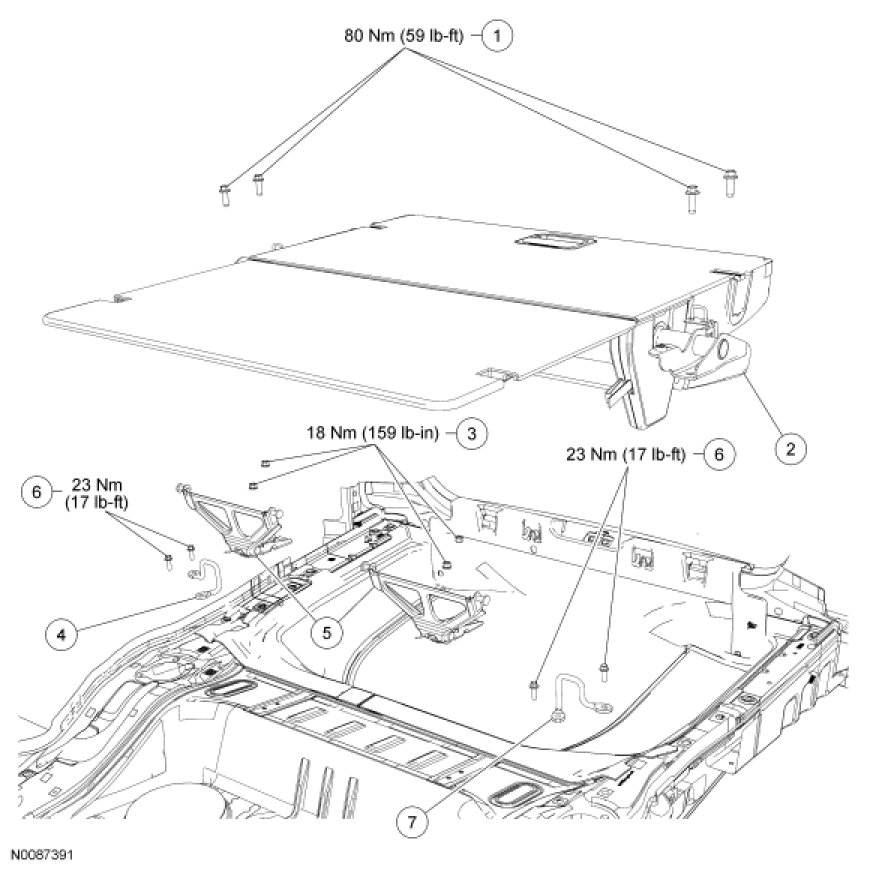

3. Remove the 4 bolts and third row seat.
- To install, tighten to 80 Nm (59 lb-ft).

4. To install, reverse the removal procedure.
- Make sure the safety belt buckles are accessible to the occupants after installation.
