Intake Manifold

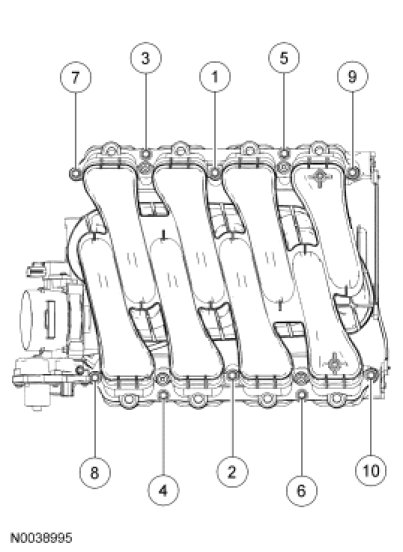

Install the 10 intake manifold bolts and tighten the bolts in the sequence shown in 2 stages.
Stage 1: Tighten to 2 Nm (18 lb-in).
Stage 2: Tighten to 10 Nm (89 lb-in).
