Home >> Mercury >> 2009 >> Mountaineer AWD V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Auxiliary Climate Control Assembly, Front
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

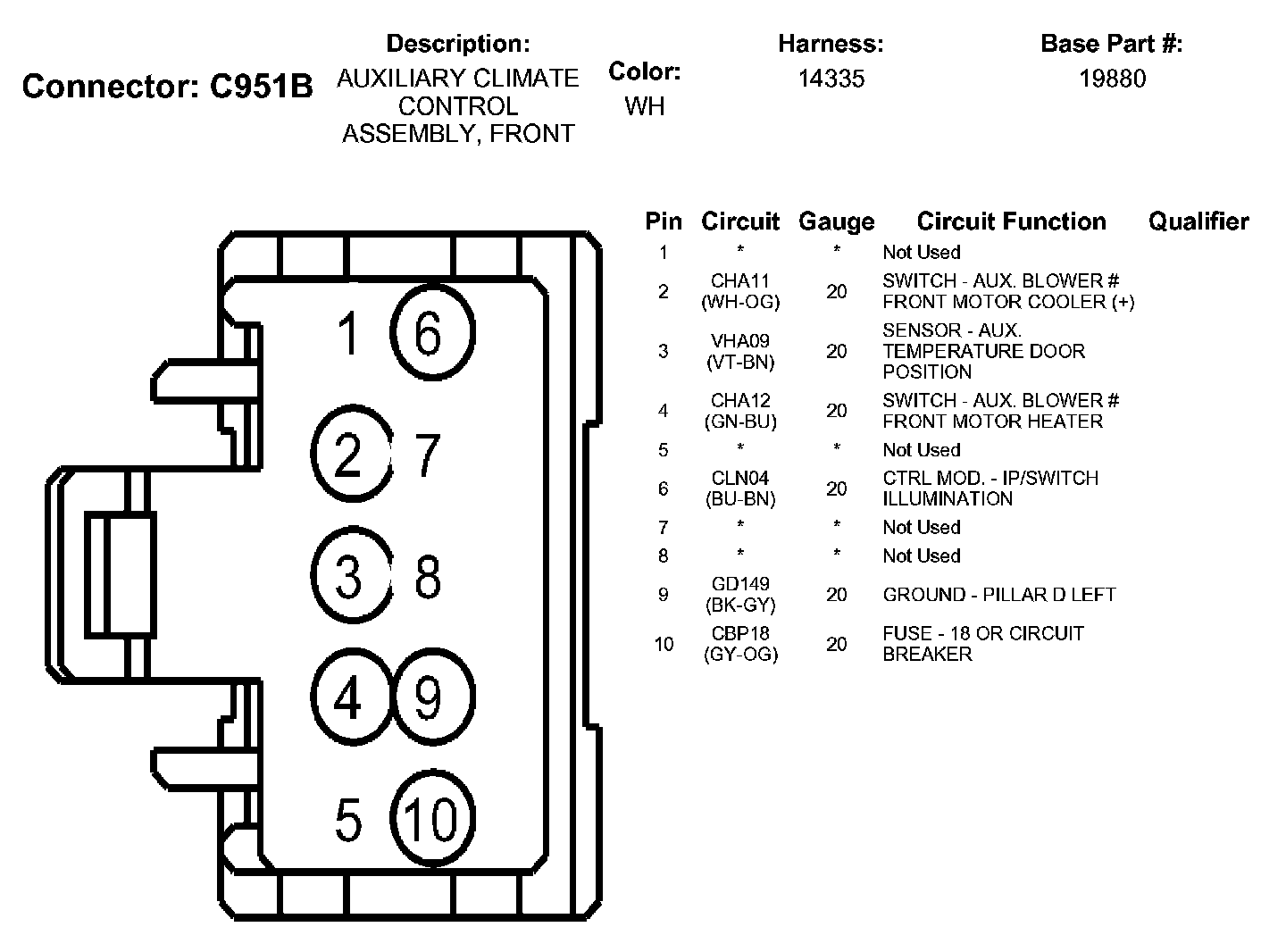

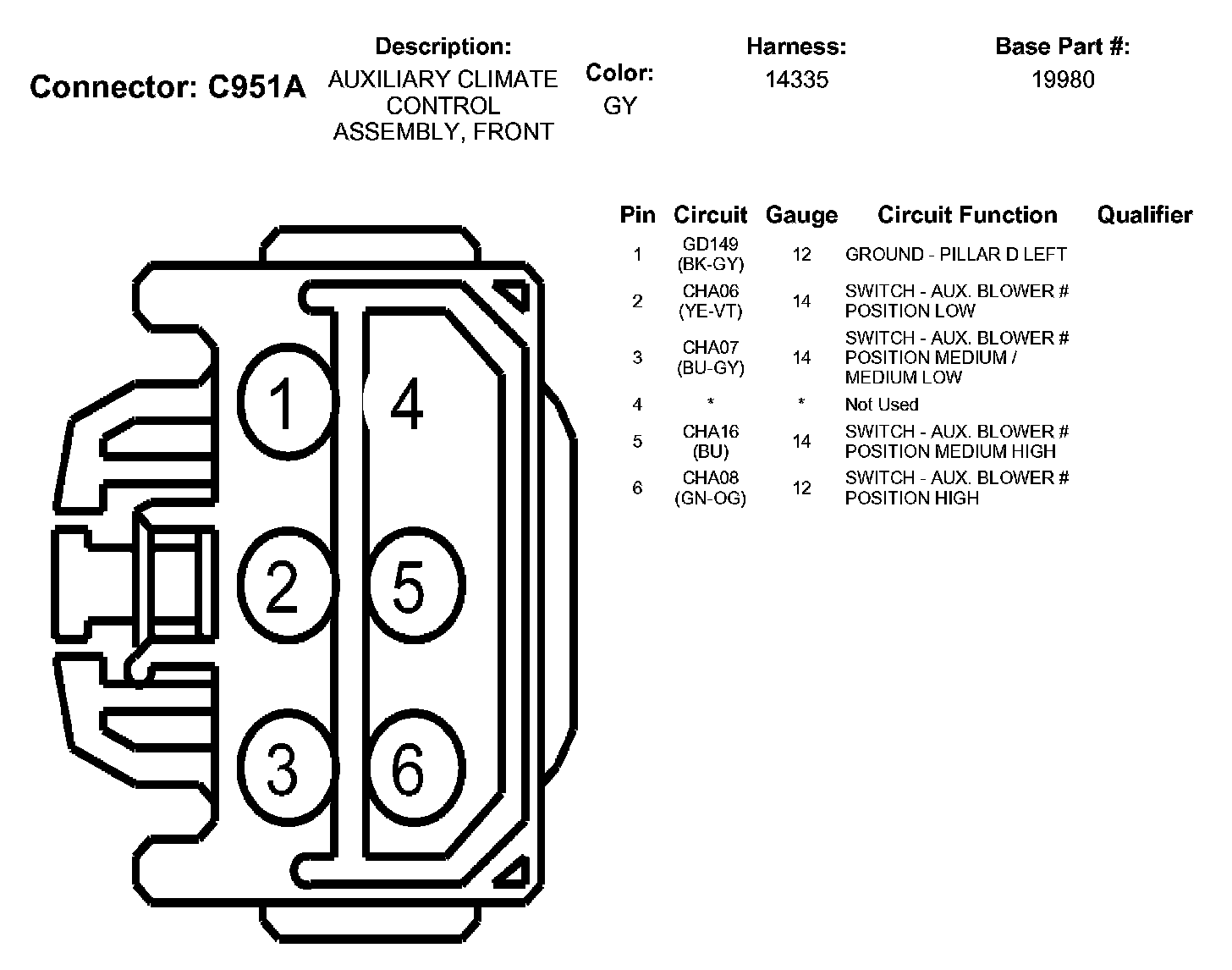

Auxiliary Climate Control Assembly, Front
