ABS Module DTC Chart




Anti-Lock Control

DTC Charts

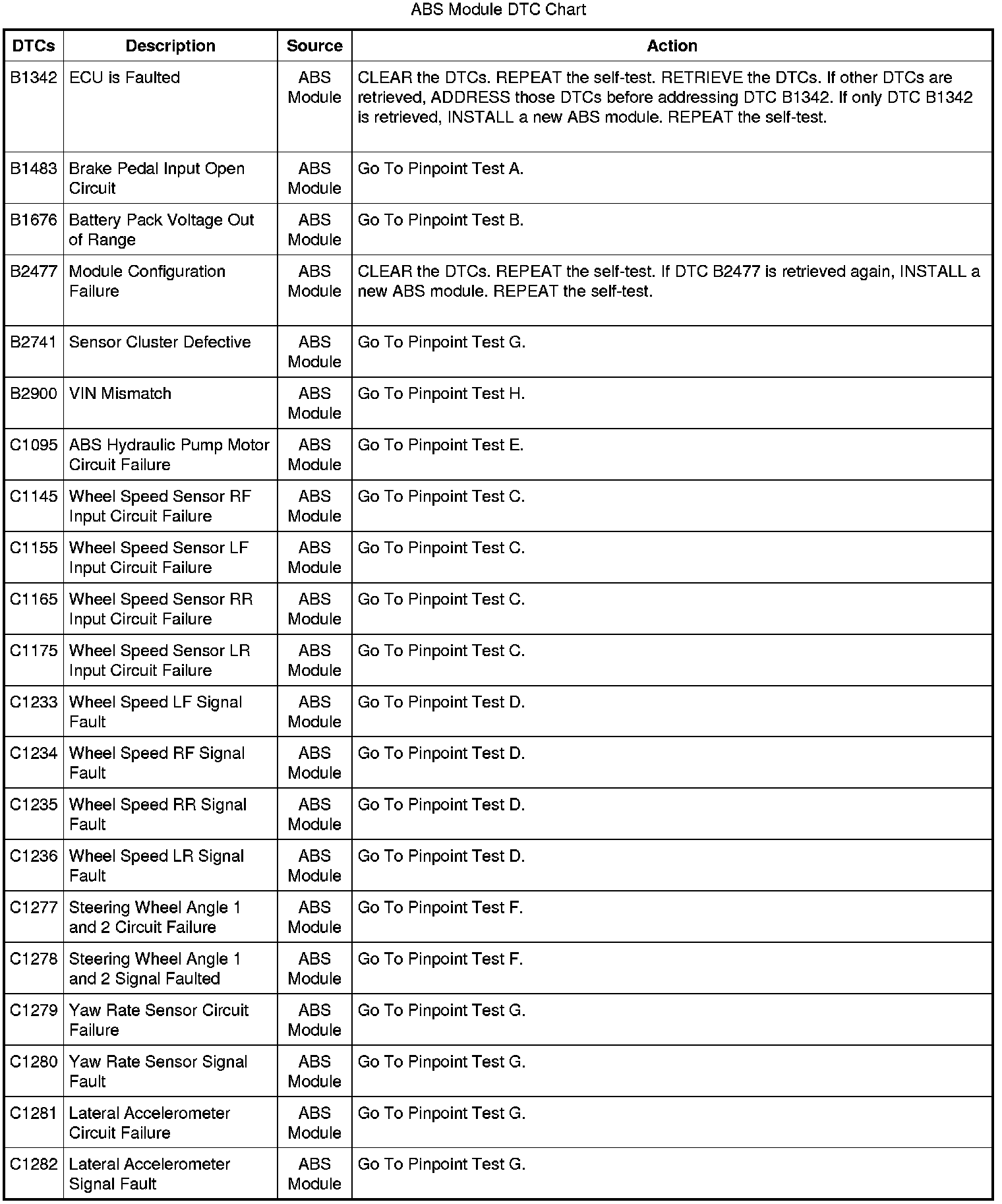

B1342-B2900 / C1095-C1282:

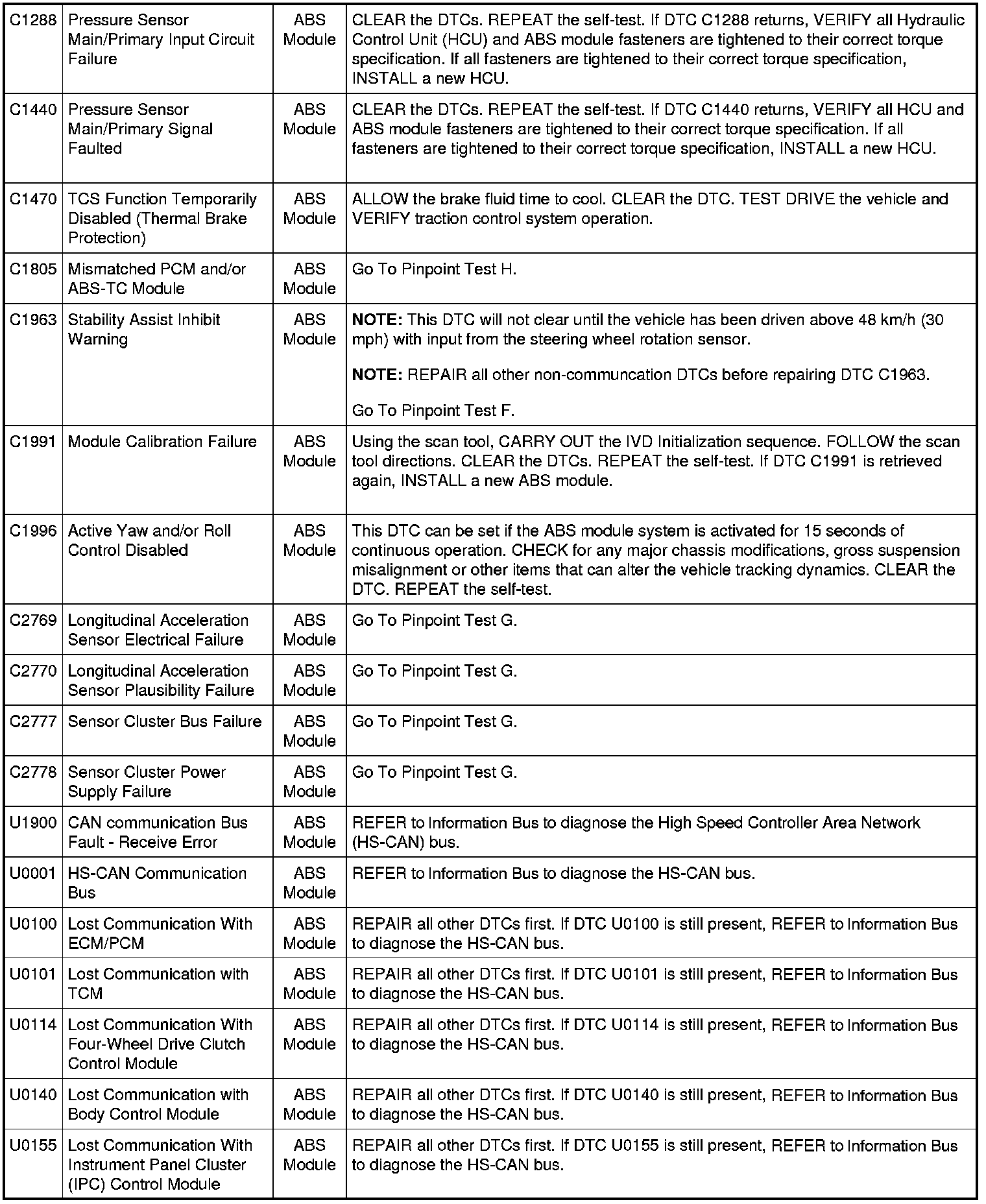

C1288-C2778 / U0001-U1900:

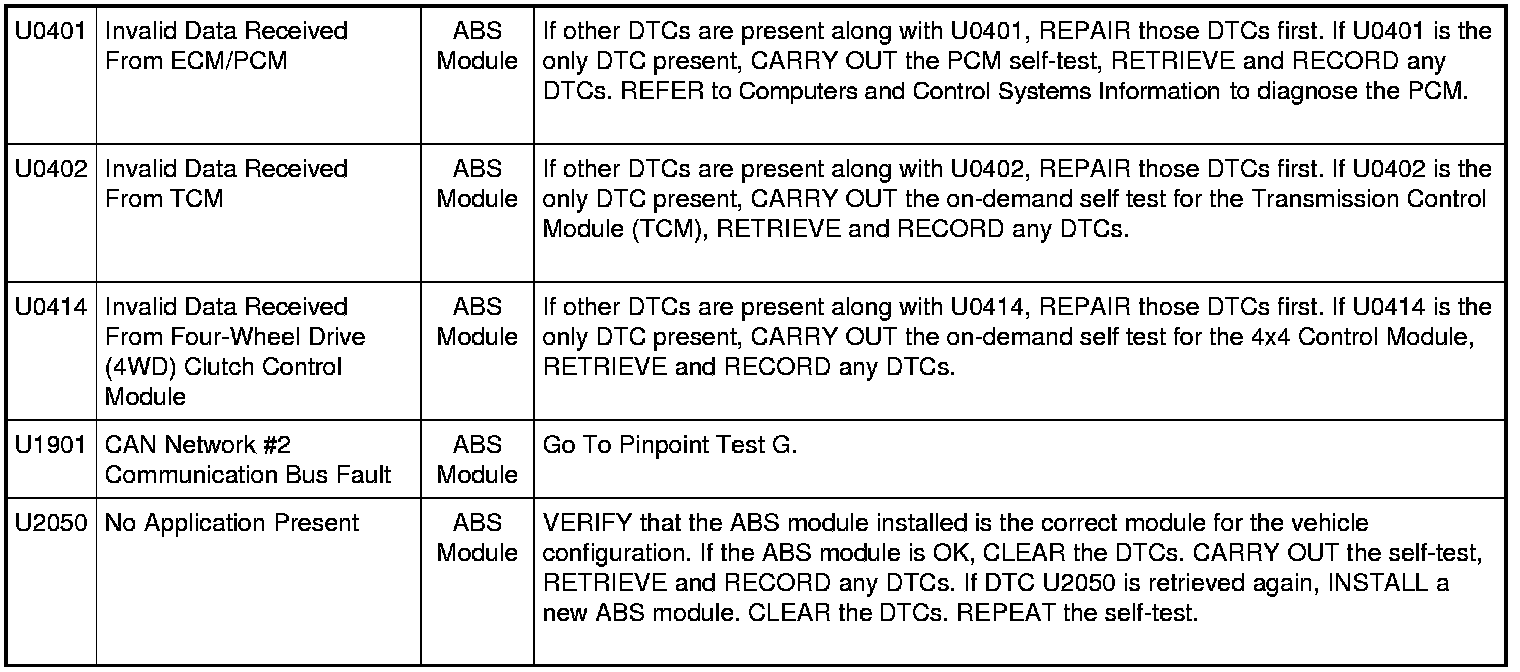

U0401-U2050:
