Passenger Seat Horizontal Motor Connector

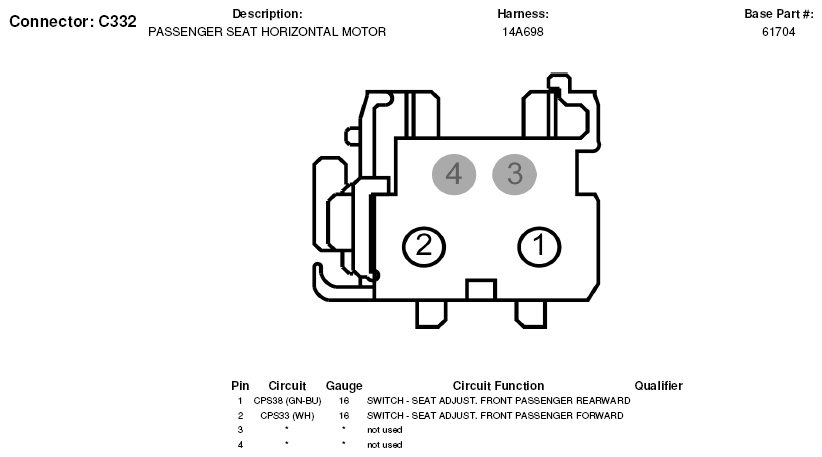

Fig 1: Passenger Seat Horizontal Motor Connector End View (C332)
