Left License Plate Lamp Connector

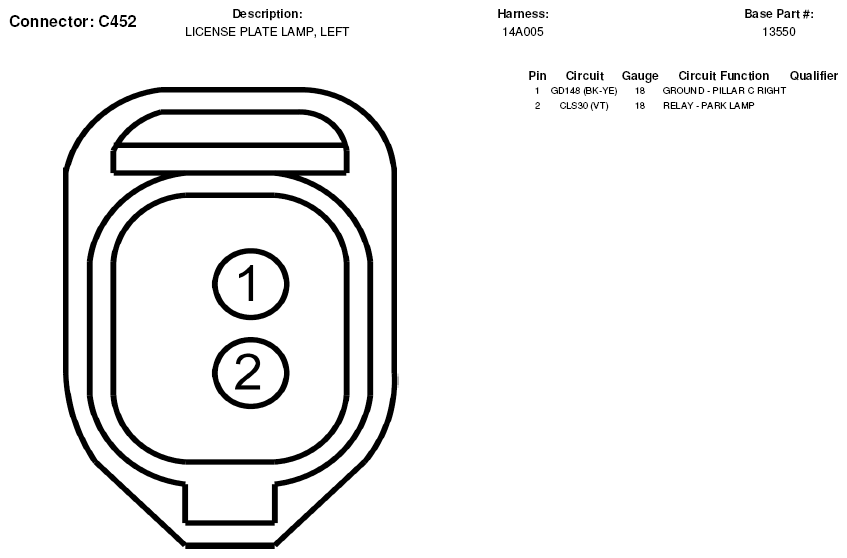

Fig 1: Left License Plate Lamp Connector End View (C452)
G05603356
Fig 2: Left License Plate Lamp Connector End View (C454)
G05603357
