Left Front Door Ajar Switch Connector
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Left Front Door Ajar Switch Connector

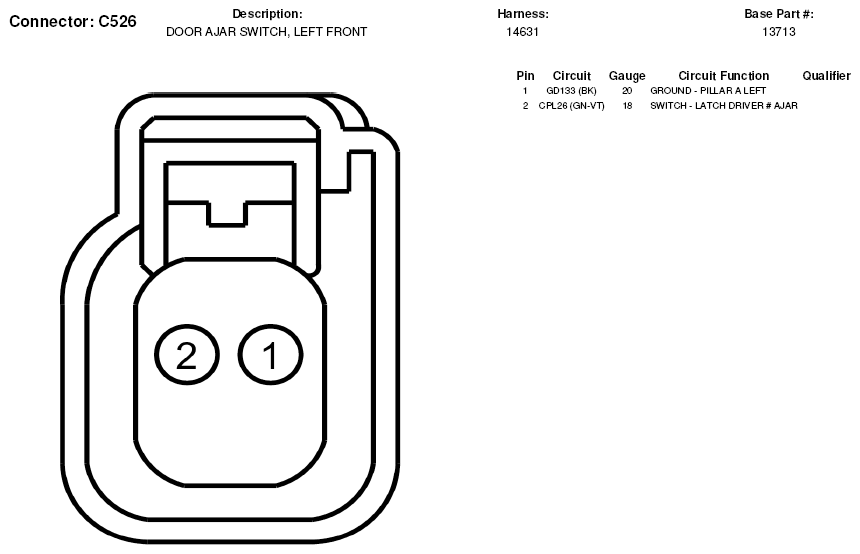

Fig 1: Left Front Door Ajar Switch Connector End View (C526)
