High Mounted Stoplamp Connector

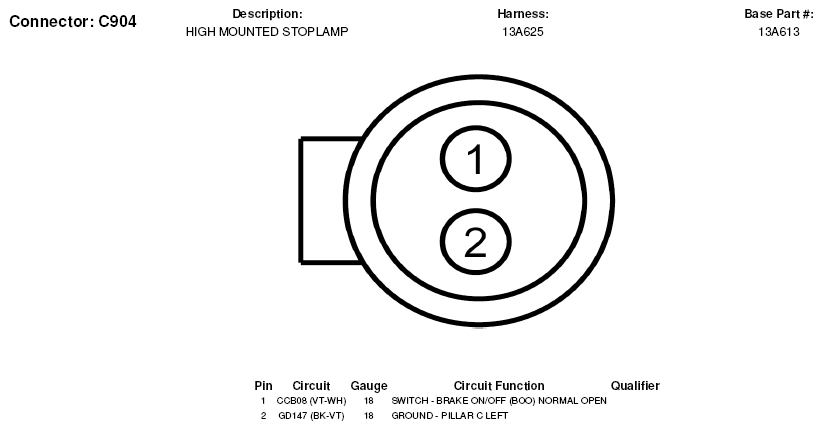

Fig 1: High Mounted Stoplamp Connector End View (C904)
Fig 2: High Mounted Stoplamp Connector End View (C9040)
