Driver Seat Front Height Motor Connector
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Driver Seat Front Height Motor Connector

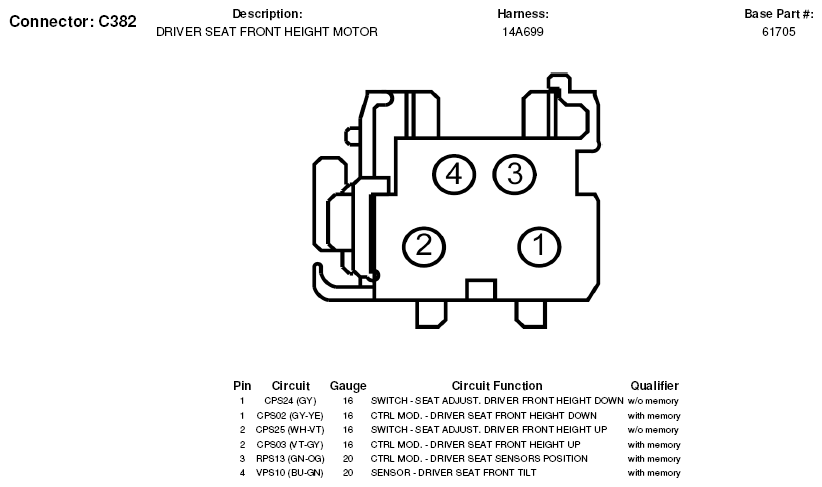

Fig 1: Driver Seat Front Height Motor Connector End View (C382)
