Adjustable Pedal Motor Connector

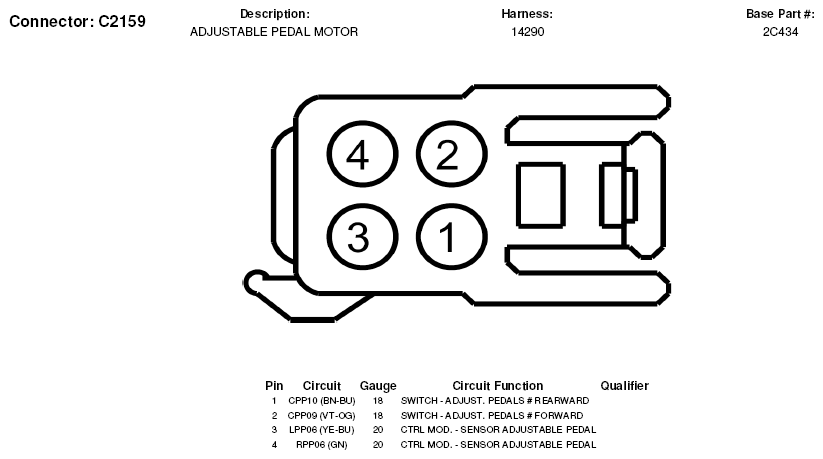

Fig 1: Adjustable Pedal Motor Connector End View (C2159)

G05603460
