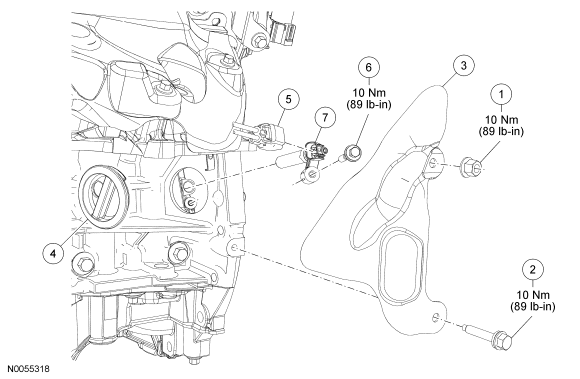

Crankshaft Position (CKP) Sensor: Notes
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W701542 |
Heat shield nut |
| 2 |
W701669 |
Heat shield bolt |
| 3 |
6K342 |
Heat shield |
| 4 |
6C070 |
Rubber grommet cover |
| 5 |
14A464 |
Crankshaft position (CKP) sensor electrical connector |
| 6 |
6D327 |
CKP sensor bolt |
| 7 |
6C315 |
CKP sensor |
