Door Speaker: Notes

NOTE: Premium speaker shown, others similar.

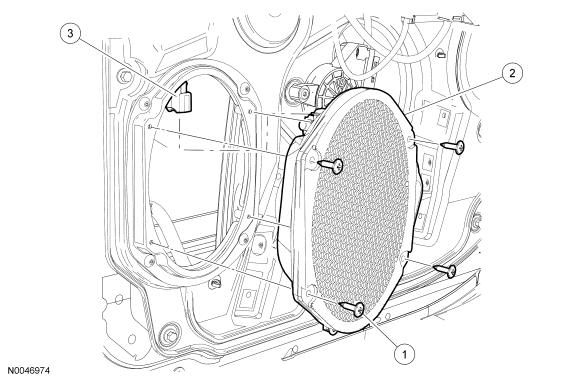

Fig 1: Exploded View Of Door Speaker
GF0018201Courtesy of FORD MOTOR CO.
Item Part Number Description
1 996707 Door speaker screws (4 required)
2 013300 Door speaker
3 14A464 Door speaker electrical connector
