Left Rear Window Adjust Switch Connector
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Left Rear Window Adjust Switch Connector

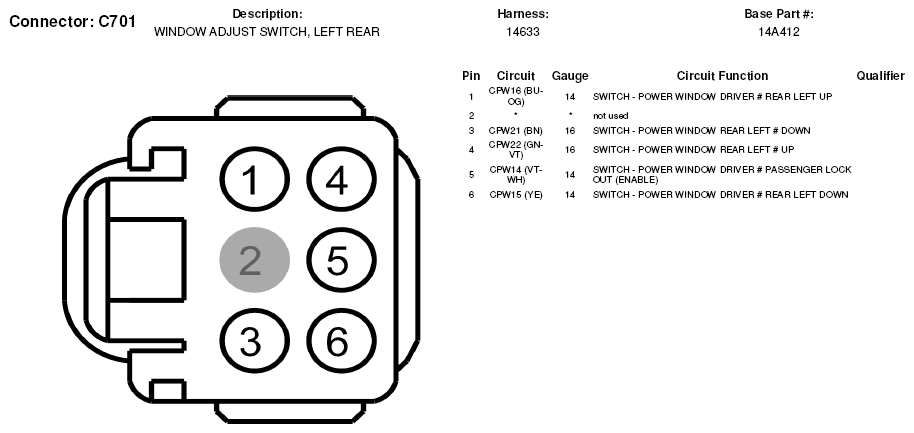

Fig 1: Left Rear Window Adjust Switch Connector End View (C701)
