Brake Fluid Level Switch Connector

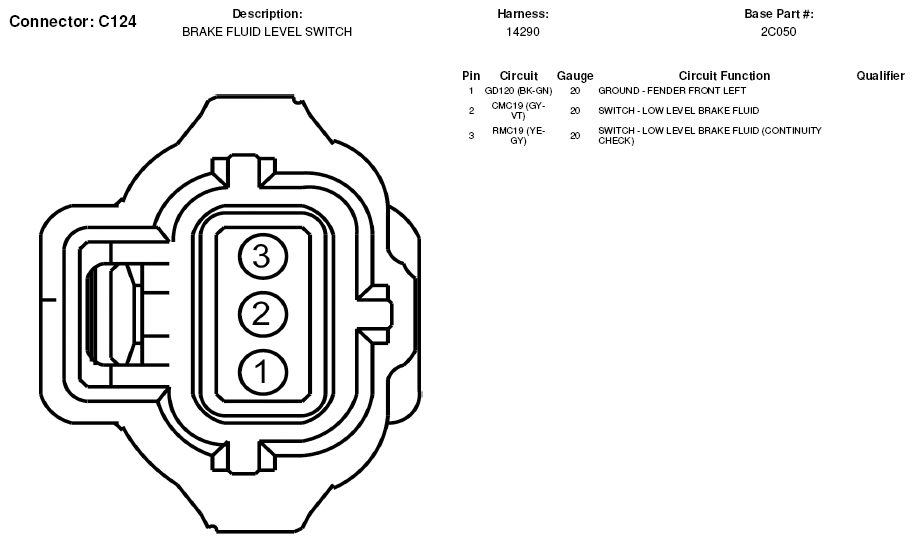

Fig 1: Brake Fluid Level Switch Connector End View (C124)

G05603246
