Window Glass - Fixed, Rear Door: Notes

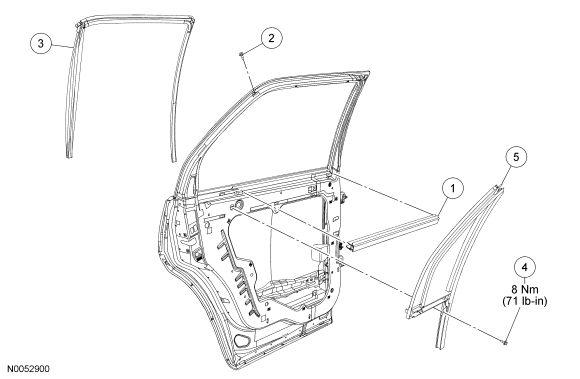

Fig 1: Exploded View Of Fixed Rear Door Window Glass With Torque Specifications
GF0016550Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7425860 Rear door window glass interior weatherstrip
2 N811106 Rear door fixed window glass screw
3 7425767 LH/ 7425766 RH Rear door window glass top run
4 W506410 Bolt
5 25831 LH/ 25830 RH Rear door fixed window glass
