Steering Angle Sensor: Service and Repair

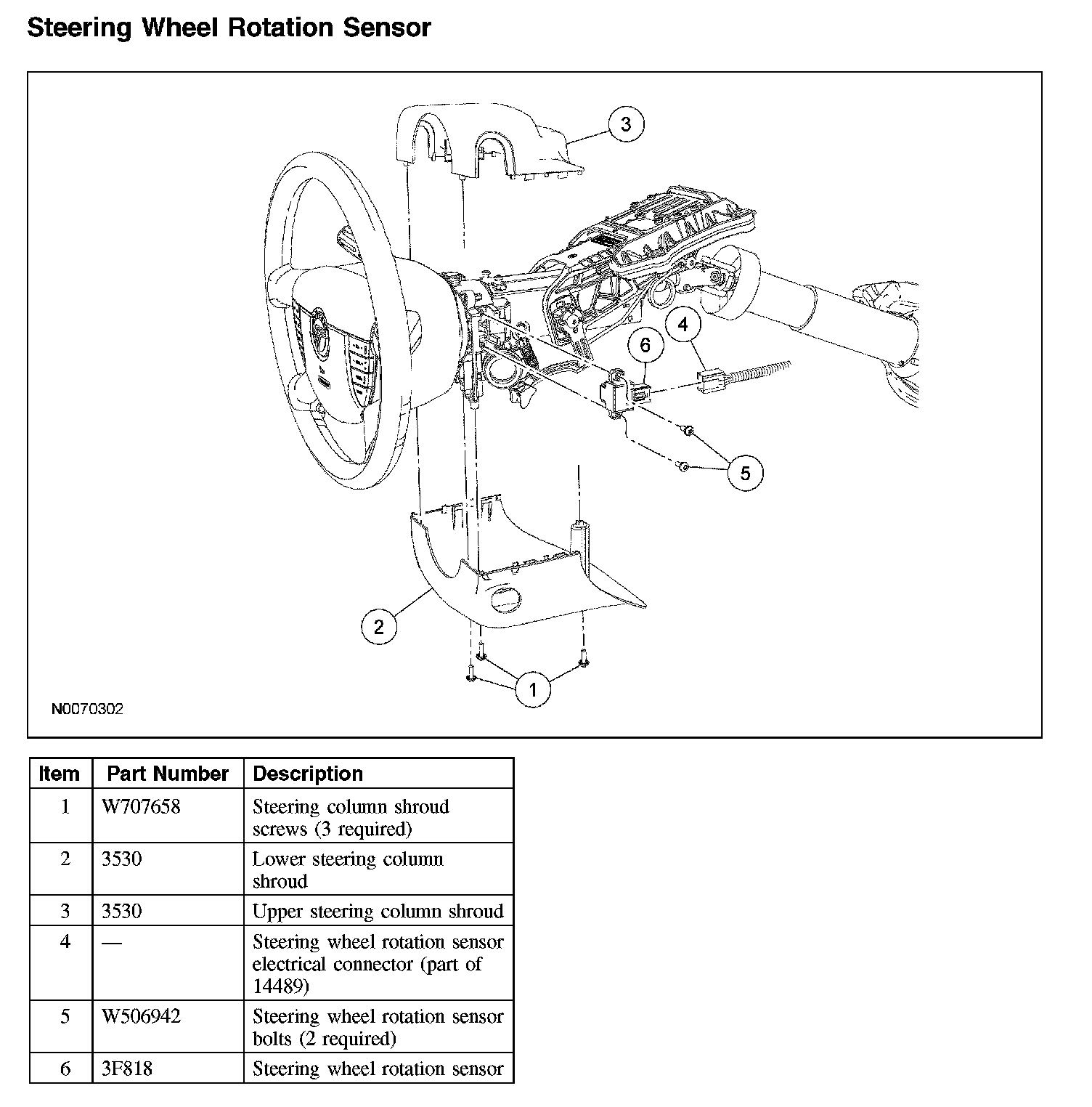

Steering Wheel Rotation Sensor

Steering Wheel Rotation Sensor:

Removal and Installation
1. Remove the 3 lower steering column shroud screws.
2. Separate and remove the upper and lower steering column shrouds.
3. Disconnect the steering wheel rotation sensor electrical connector.
4. Remove the 2 bolts and the steering wheel rotation sensor.
5. To install, reverse the removal procedure.
