Symptom Chart - Climate Control System

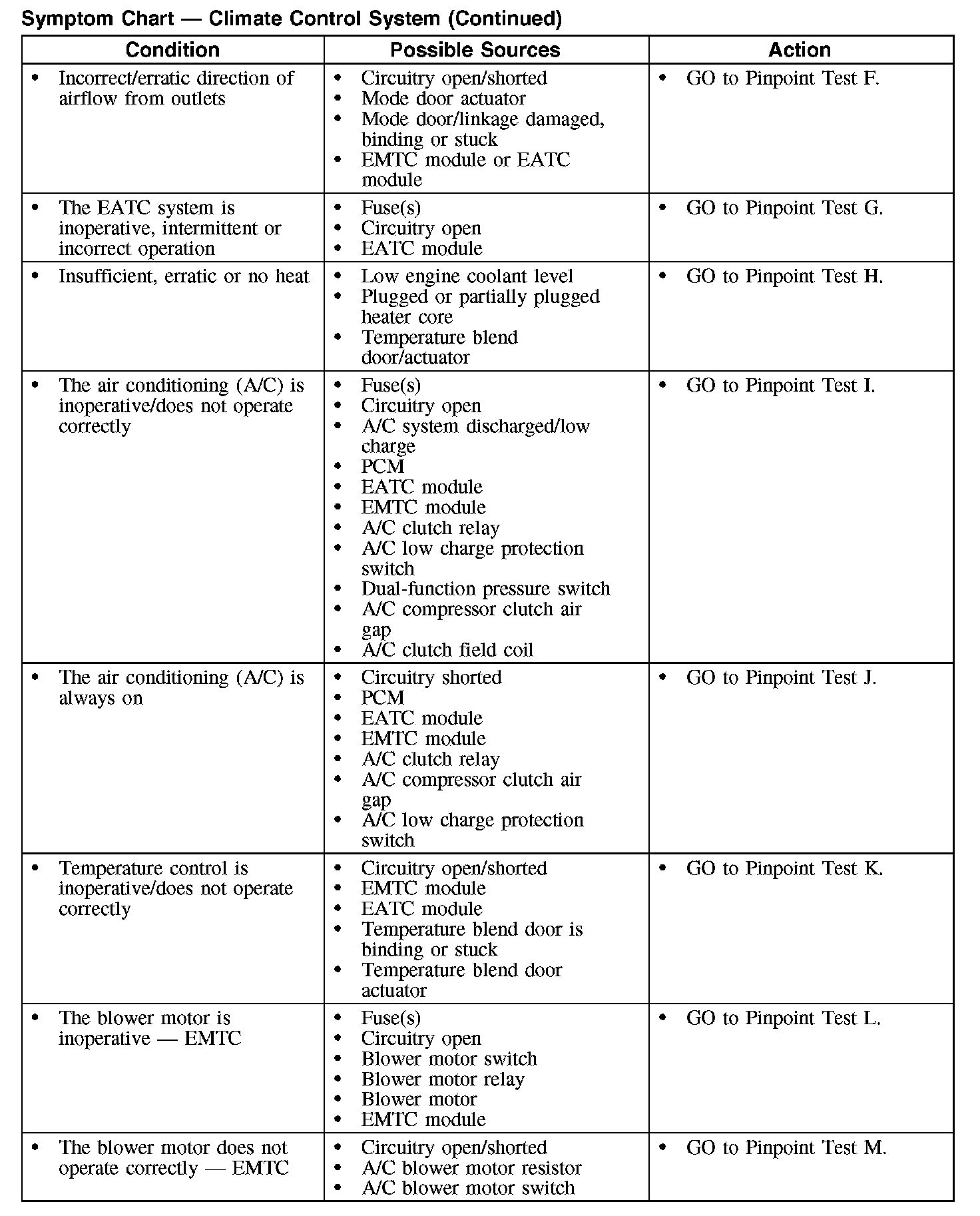

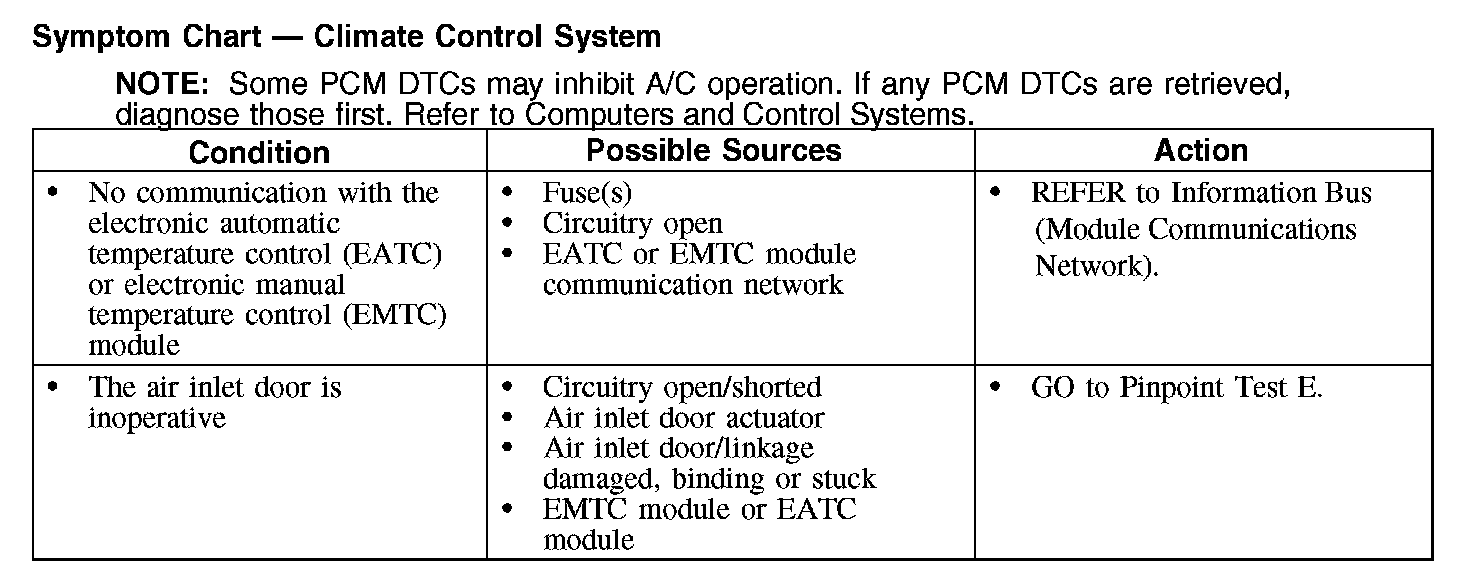

Symptom Chart - Climate Control System (Part 1):

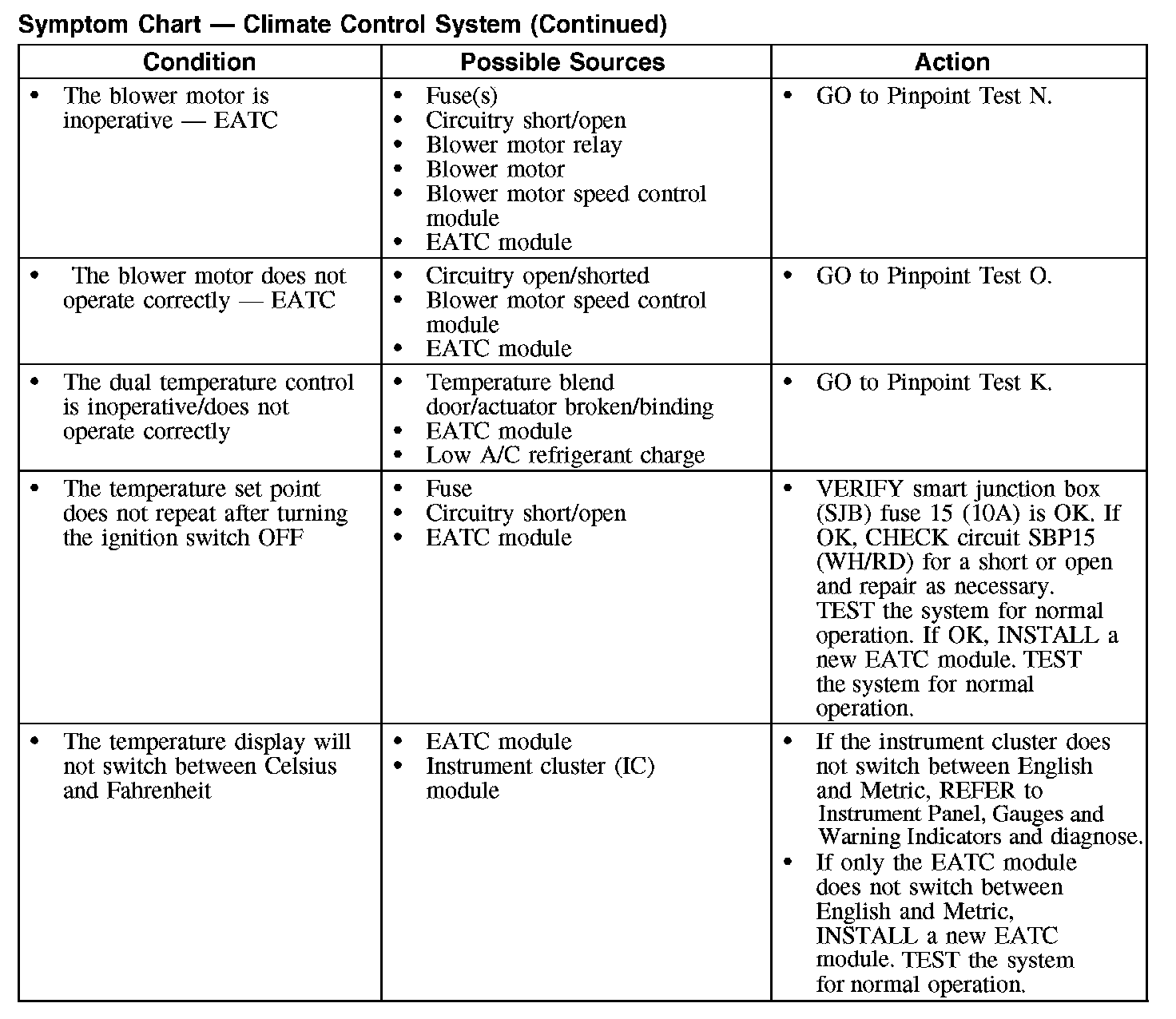

Symptom Chart - Climate Control System (Part 2):



Symptom Chart - Climate Control System (Part 3):

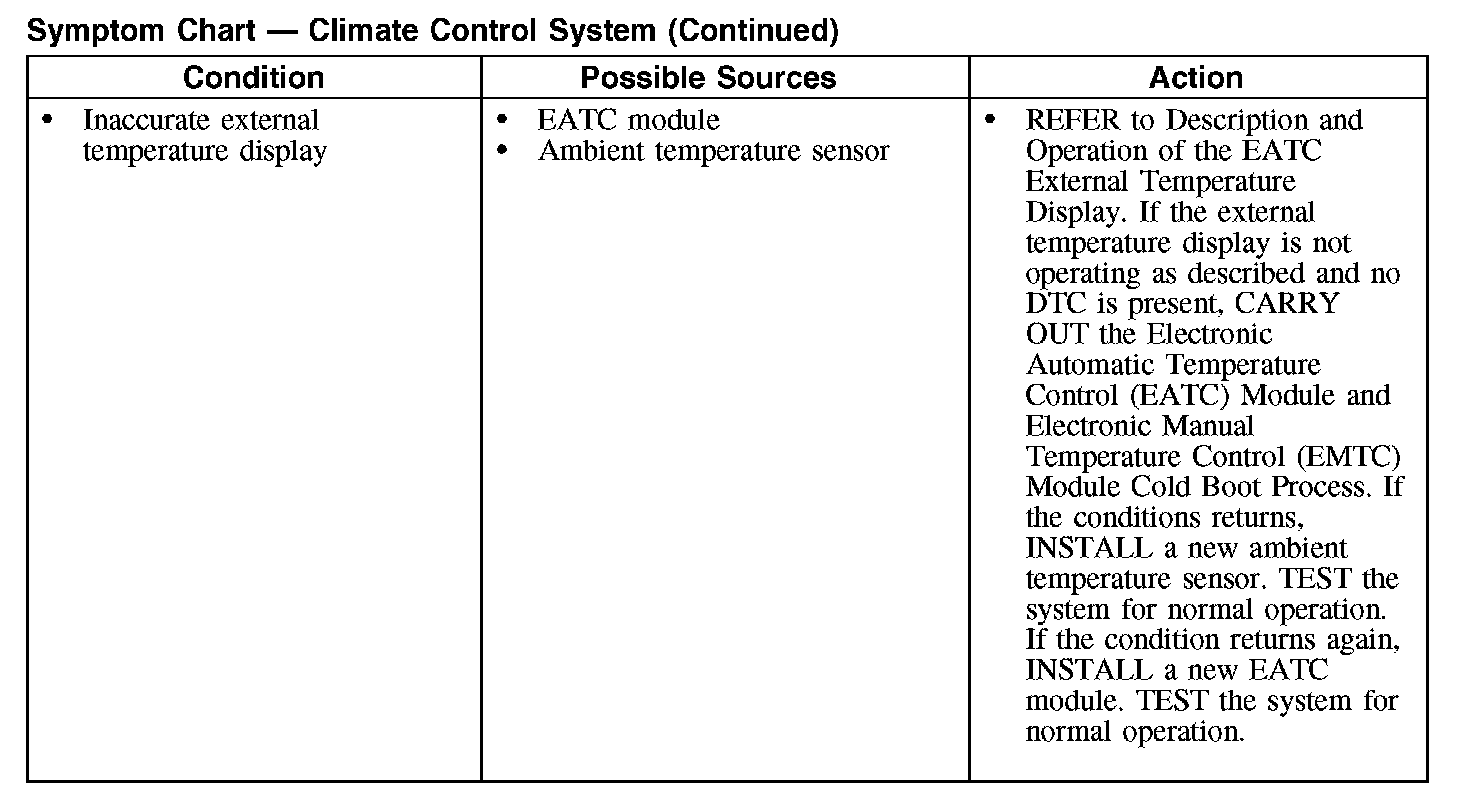

Symptom Chart - Climate Control System (Part 4):
