Pressure Feedback Exhaust Sensor: Service and Repair

DIFFERENTIAL PRESSURE FEEDBACK EXHAUST GAS RECIRCULATION (EGR) SENSOR

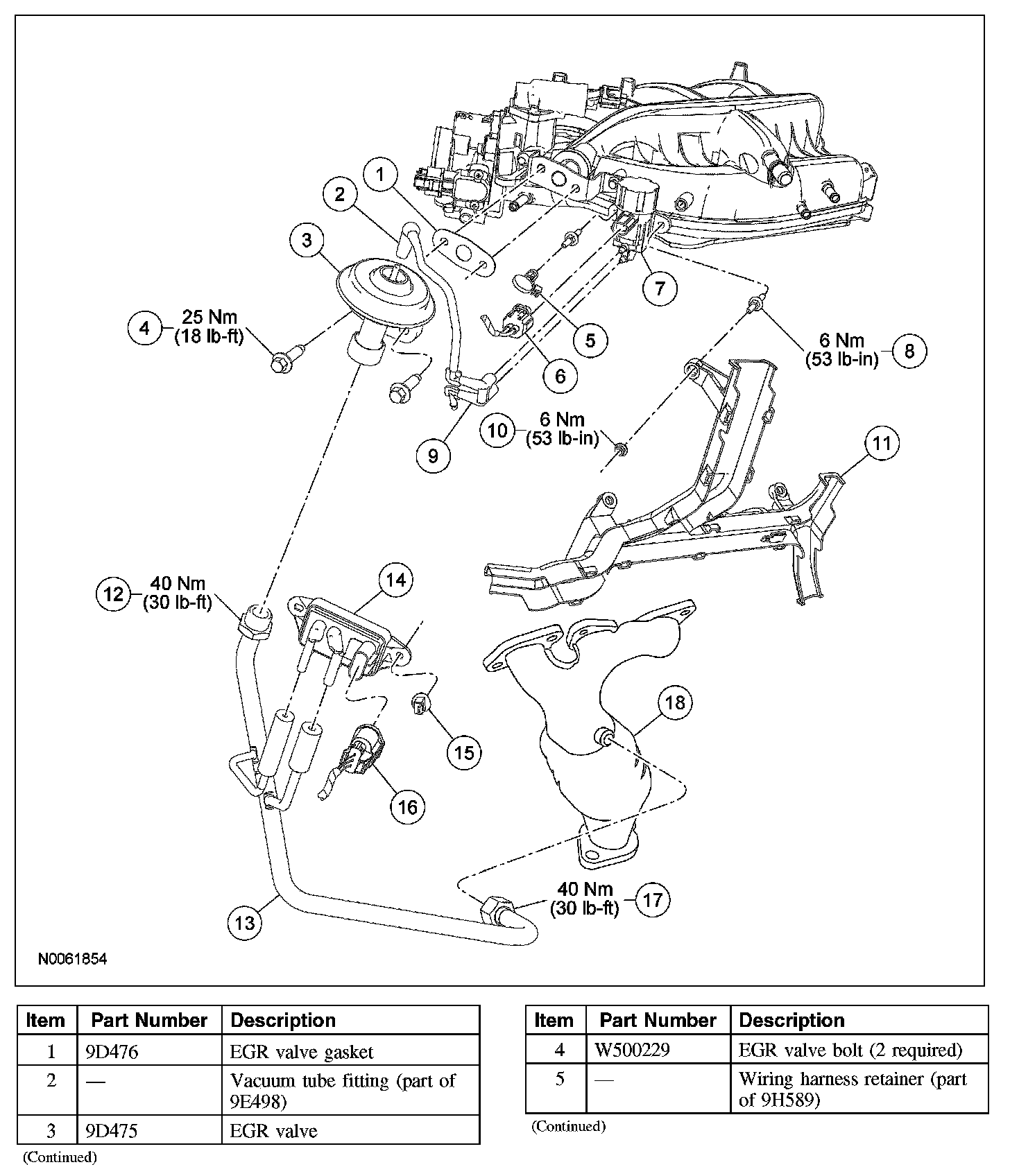

Exploded View

Part 1:

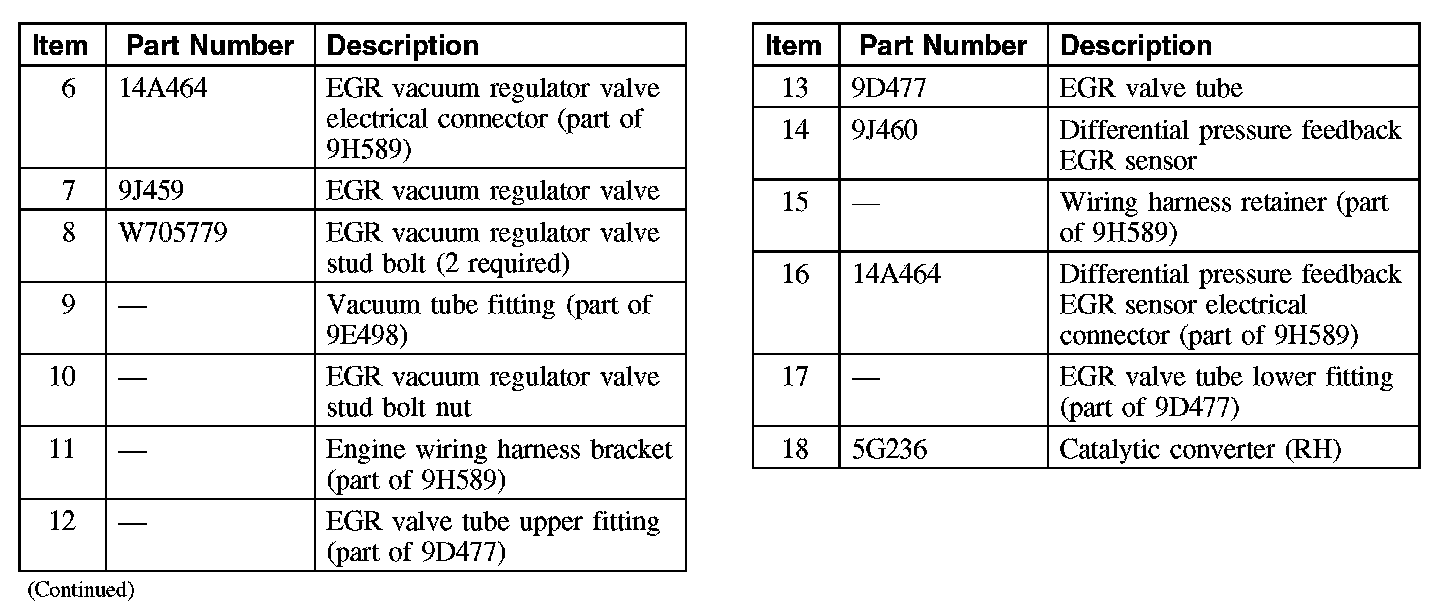

Part 2:

Removal and Installation
1. Disconnect the differential pressure feedback EGR sensor electrical connector and detach the wiring harness retainer.
2. Carefully detach the differential pressure feedback EGR sensor from the EGR valve tube.
3. To install, reverse the removal procedure.
