Sliding Door Detent Switch Connector

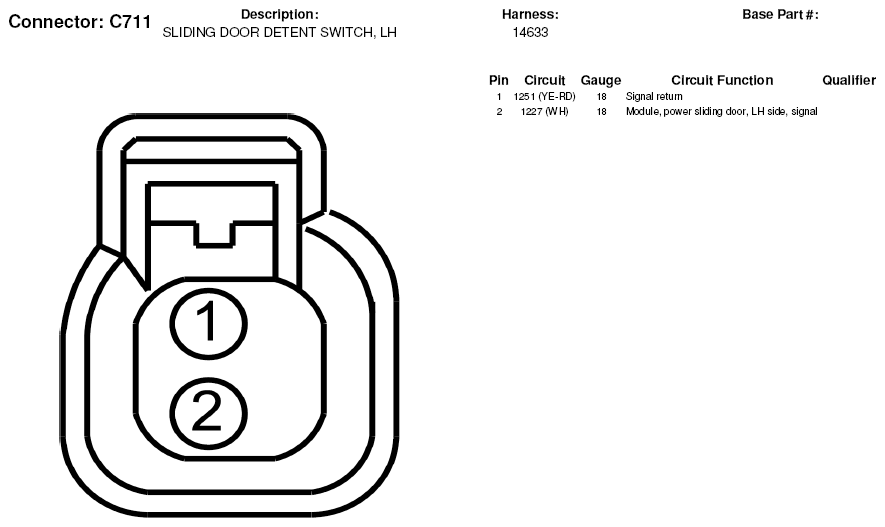

Fig 1: Sliding Door Detent Switch Connector End View (C711)
G05181613Courtesy of FORD MOTOR CO.
Fig 2: Sliding Door Detent Switch Connector End View (C811)
G05181618Courtesy of FORD MOTOR CO.
