Quarter Window Motor Connector

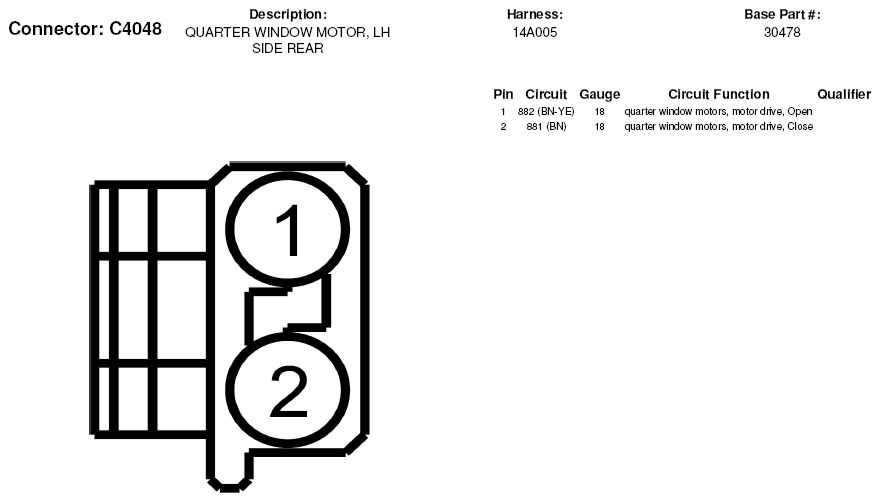

Fig 1: Quarter Window Motor Connector End View (C4048)
G05181742Courtesy of FORD MOTOR CO.
Fig 2: Quarter Window Motor Connector End View (C4090)
G05181743Courtesy of FORD MOTOR CO.
