Power Sliding Door Switch Connector

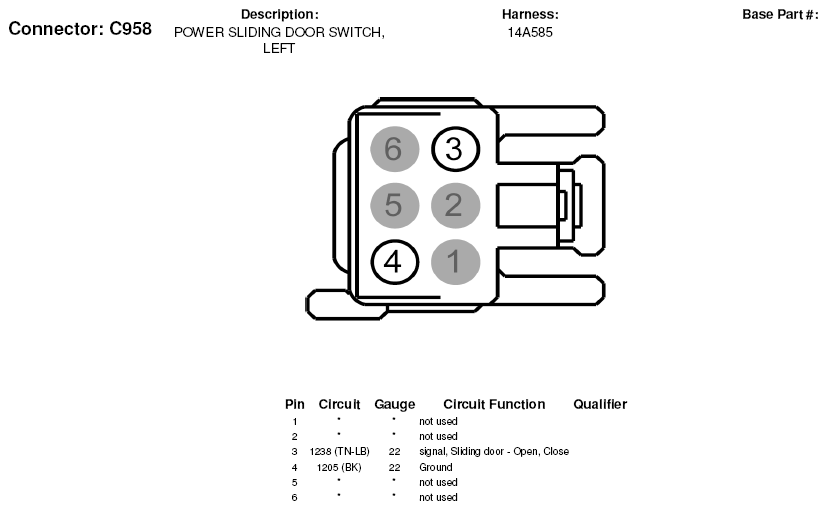

Fig 1: Power Sliding Door Switch Connector End View (C958)
G05181634Courtesy of FORD MOTOR CO.

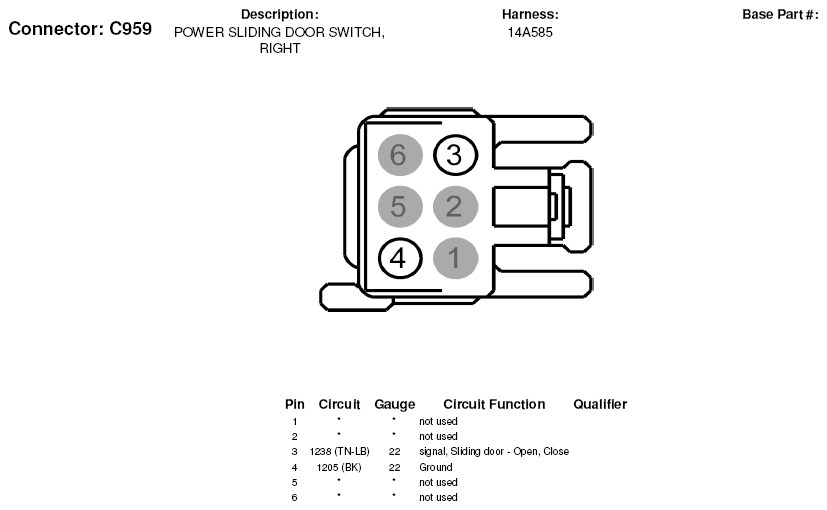

Fig 2: Power Sliding Door Switch Connector End View (C959)
G05181635Courtesy of FORD MOTOR CO.
