Inline Connectors

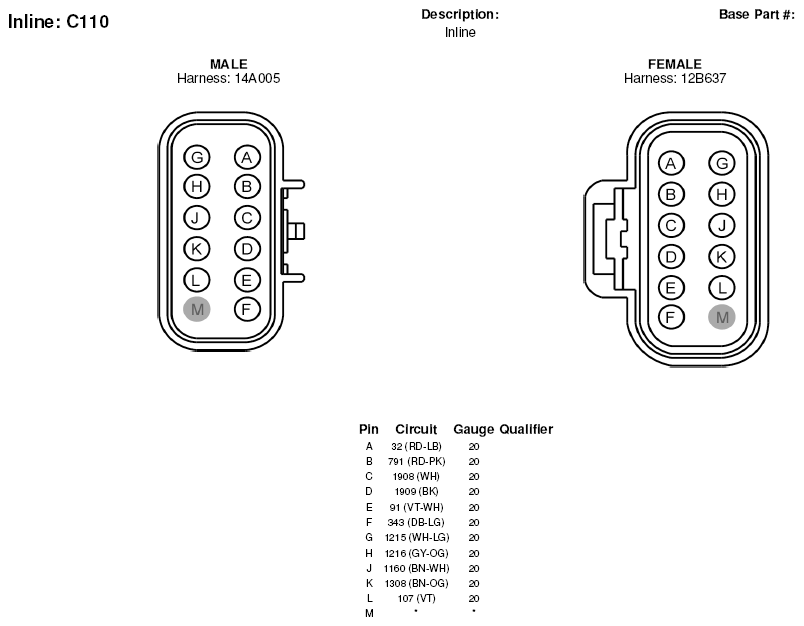

Fig 1: Inline Connector End View (C110)
Courtesy of FORD MOTOR CO.

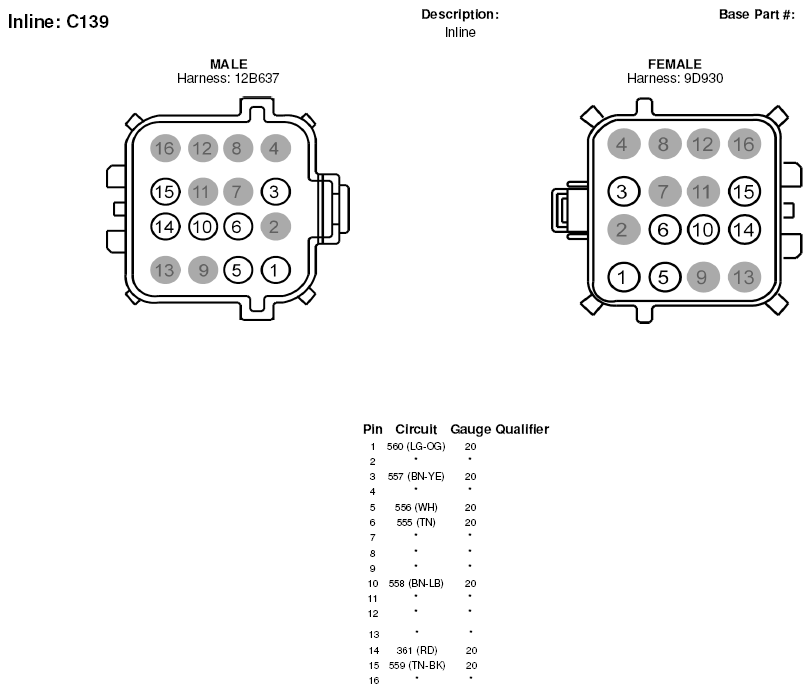

Fig 2: Inline Connector End View (C139)
Courtesy of FORD MOTOR CO.

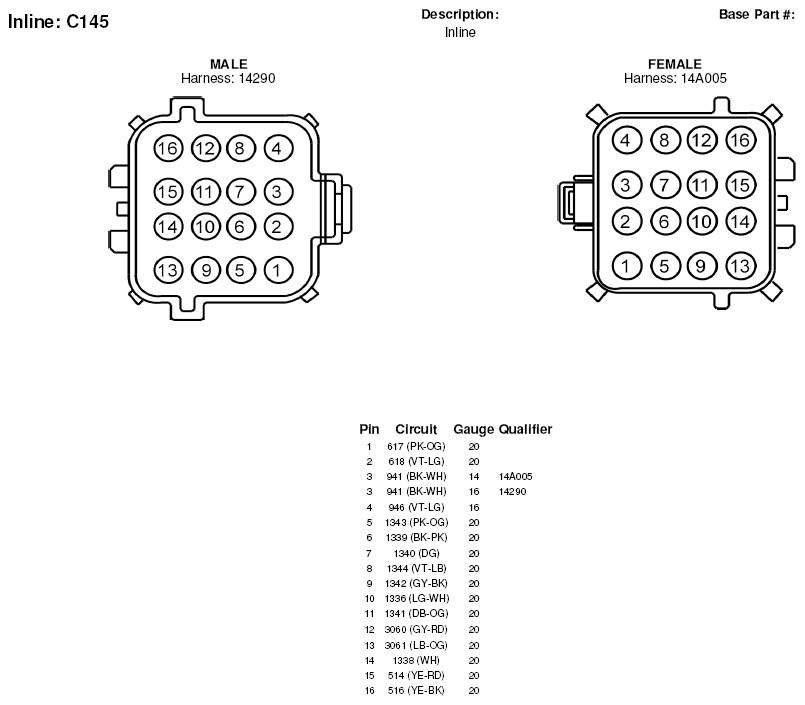

Fig 3: Inline Connector End View (C145)
Courtesy of FORD MOTOR CO.

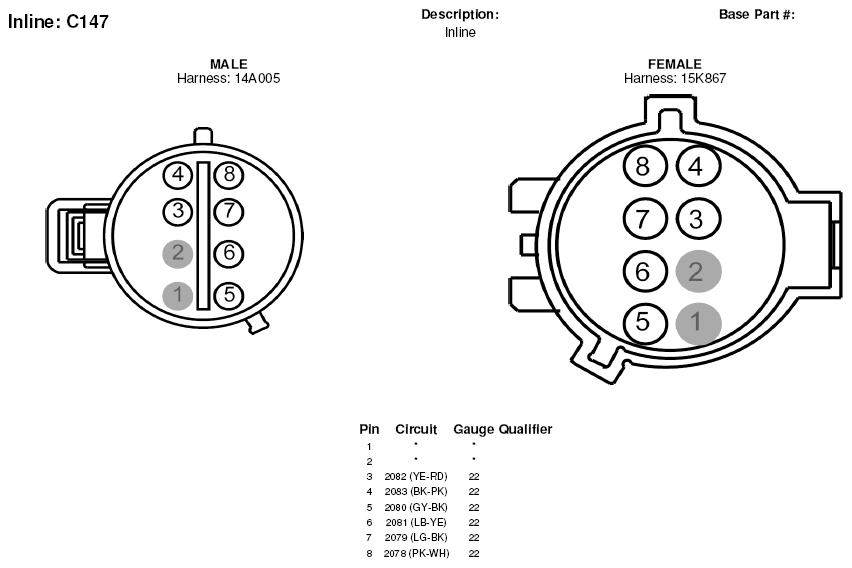

Fig 4: Inline Connector End View (C147)
Courtesy of FORD MOTOR CO.

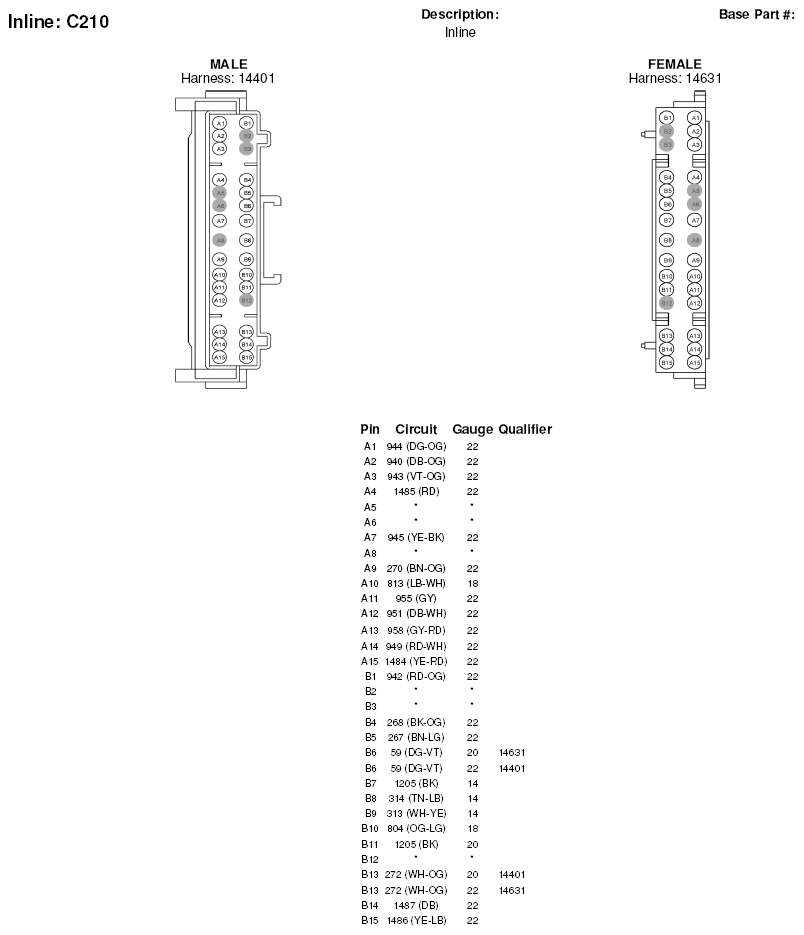

Fig 5: Inline Connector End View (C210)
Courtesy of FORD MOTOR CO.

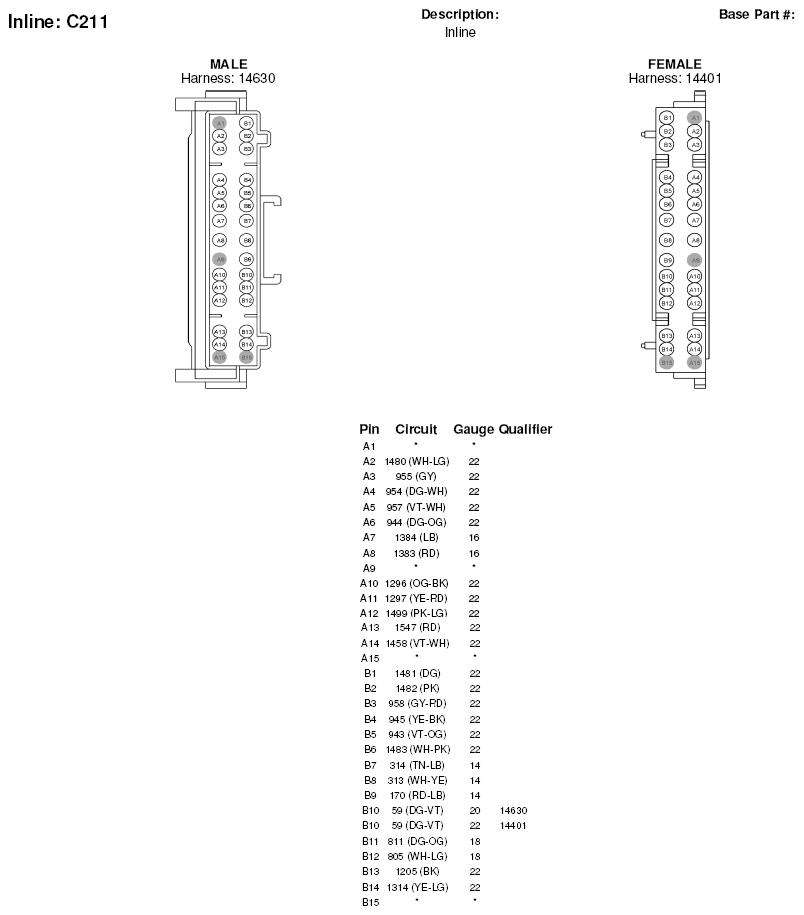

Fig 6: Inline Connector End View (C211)
Courtesy of FORD MOTOR CO.

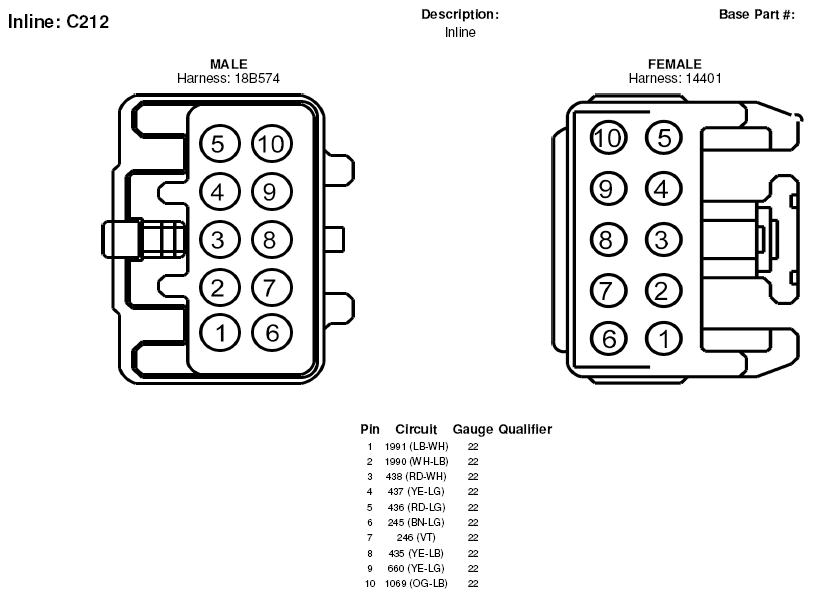

Fig 7: Inline Connector End View (C212)
Courtesy of FORD MOTOR CO.

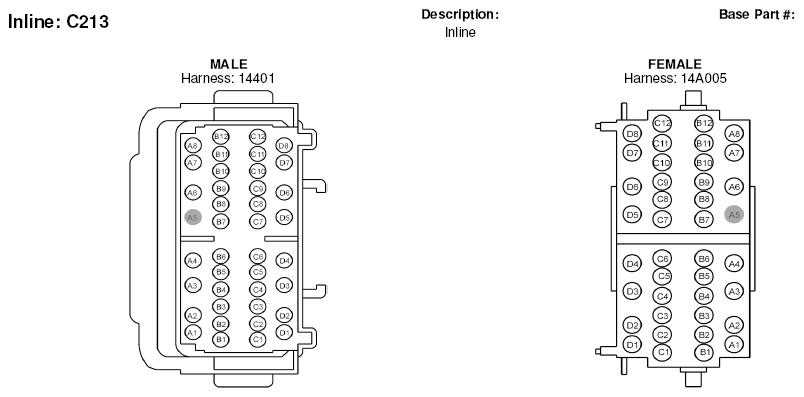

Fig 8: Inline Connector End View (C213) (1 Of 2)
Courtesy of FORD MOTOR CO.

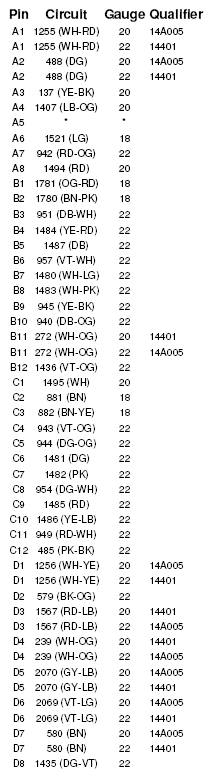

Fig 9: Inline Connector End View (C213) (2 Of 2)
Courtesy of FORD MOTOR CO.

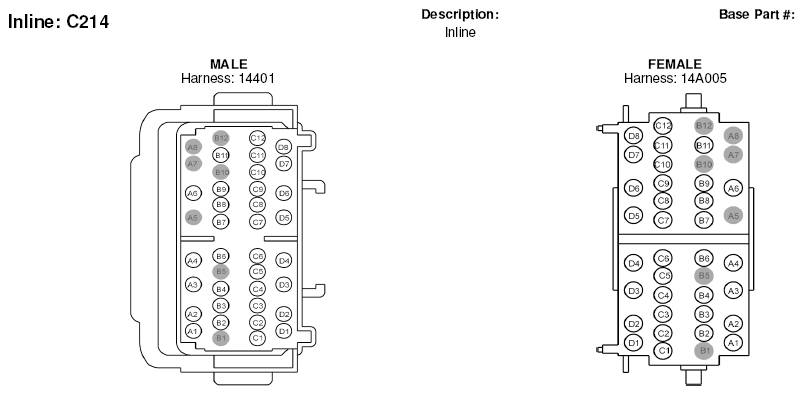

Fig 10: Inline Connector End View (C214) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 11: Inline Connector End View (C214) (2 Of 2)
Courtesy of FORD MOTOR CO.

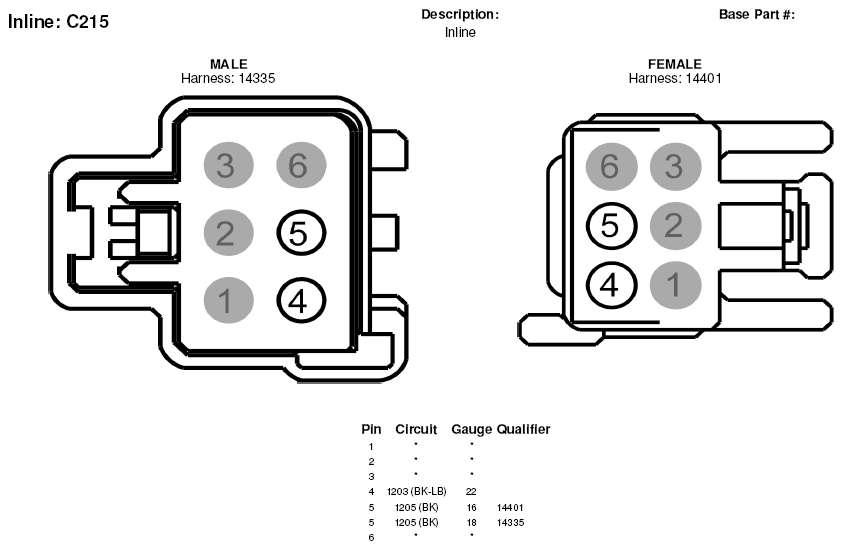

Fig 12: Inline Connector End View (C215)
Courtesy of FORD MOTOR CO.

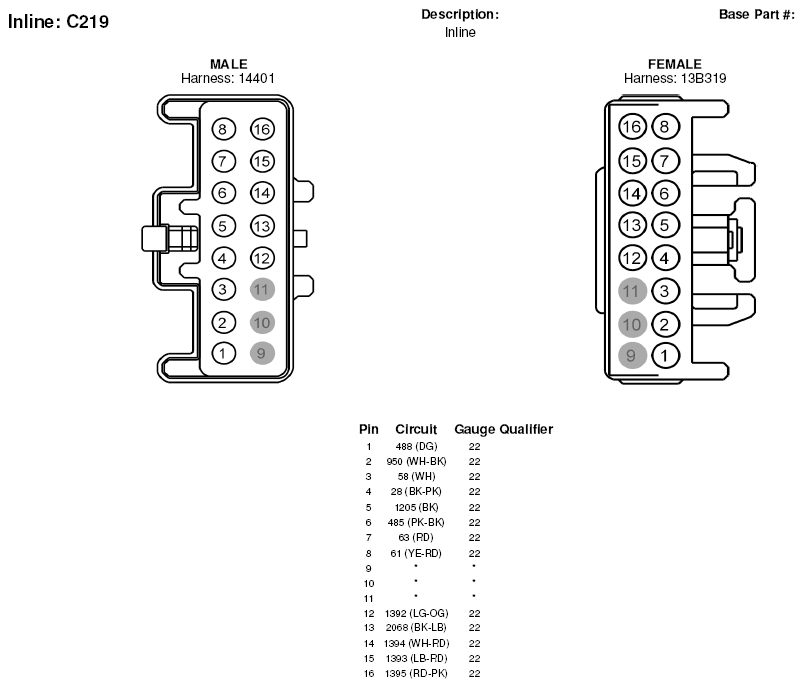

Fig 13: Inline Connector End View (C219)
Courtesy of FORD MOTOR CO.

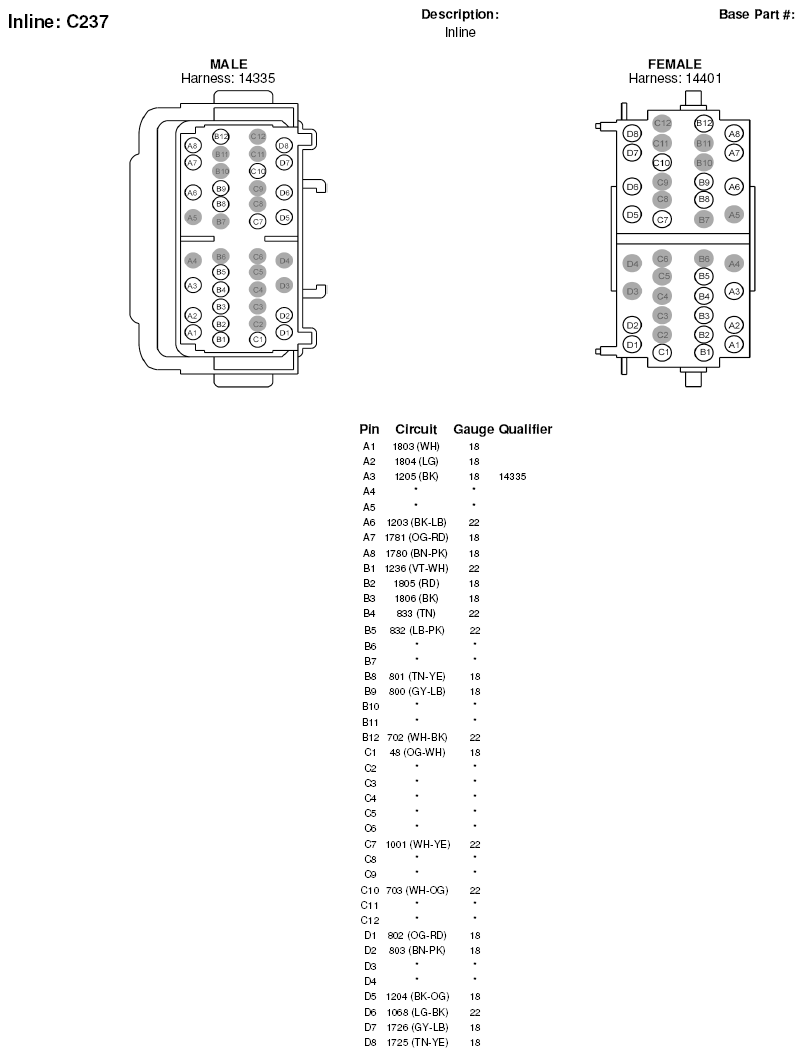

Fig 14: Inline Connector End View (C237)
Courtesy of FORD MOTOR CO.

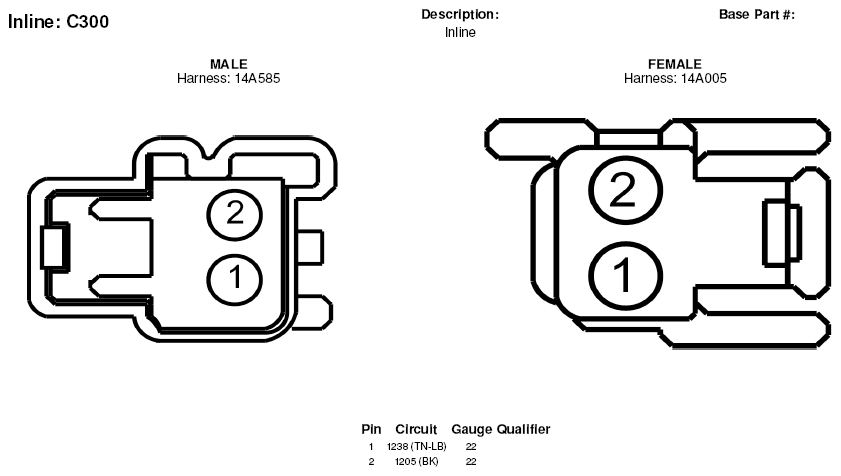

Fig 15: Inline Connector End View (C300)
Courtesy of FORD MOTOR CO.

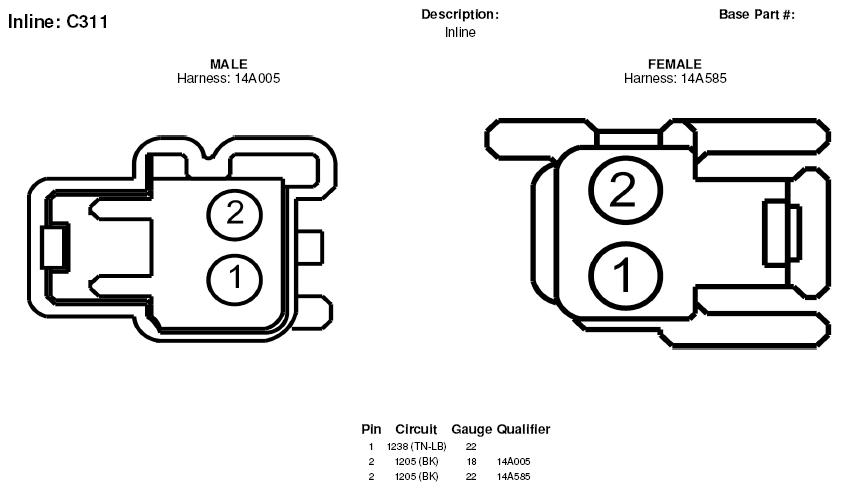

Fig 16: Inline Connector End View (C311)
Courtesy of FORD MOTOR CO.

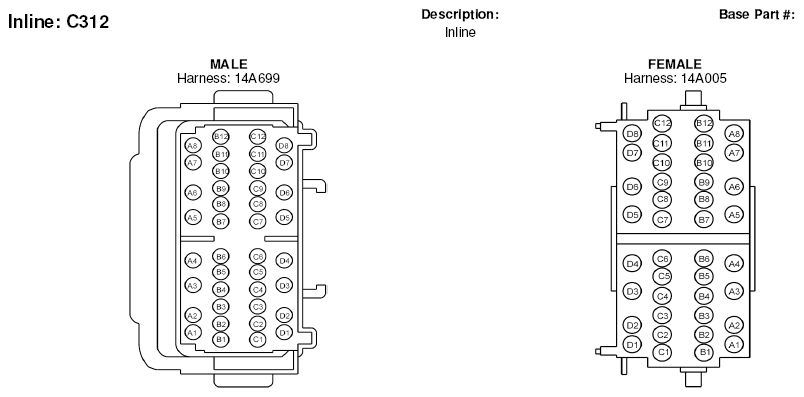

Fig 17: Inline Connector End View (C312) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 18: Inline Connector End View (C312) (2 Of 2)
Courtesy of FORD MOTOR CO.

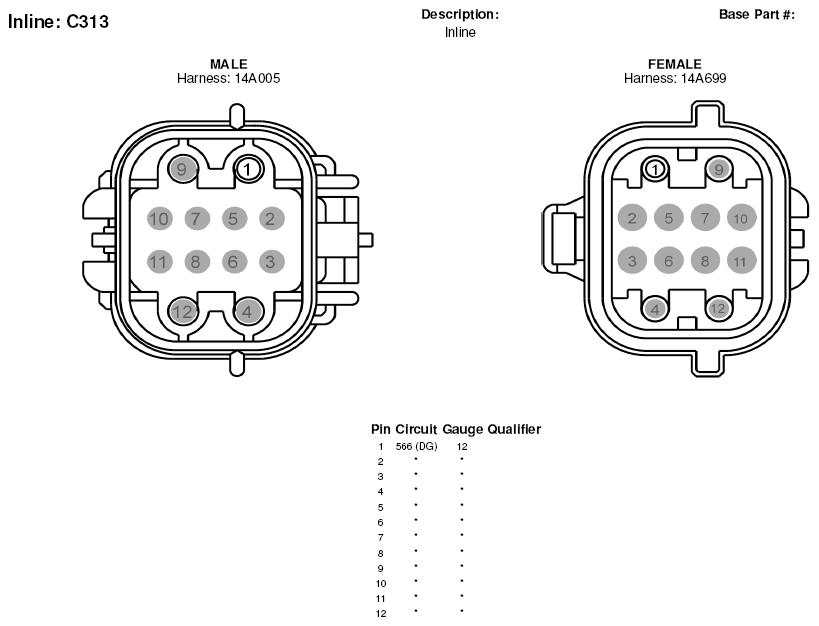

Fig 19: Inline Connector End View (C313)
Courtesy of FORD MOTOR CO.

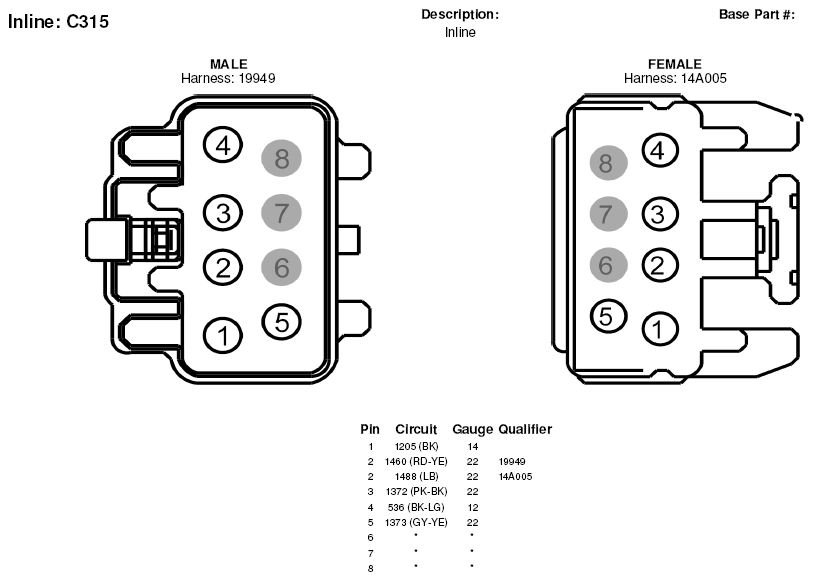

Fig 20: Inline Connector End View (C315)
Courtesy of FORD MOTOR CO.

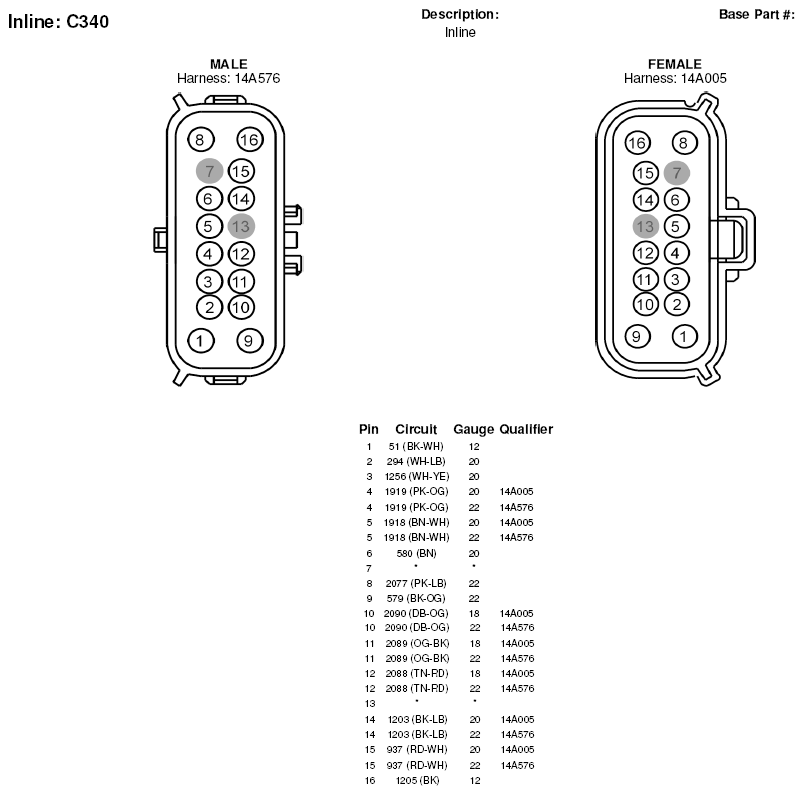

Fig 21: Inline Connector End View (C340)
Courtesy of FORD MOTOR CO.

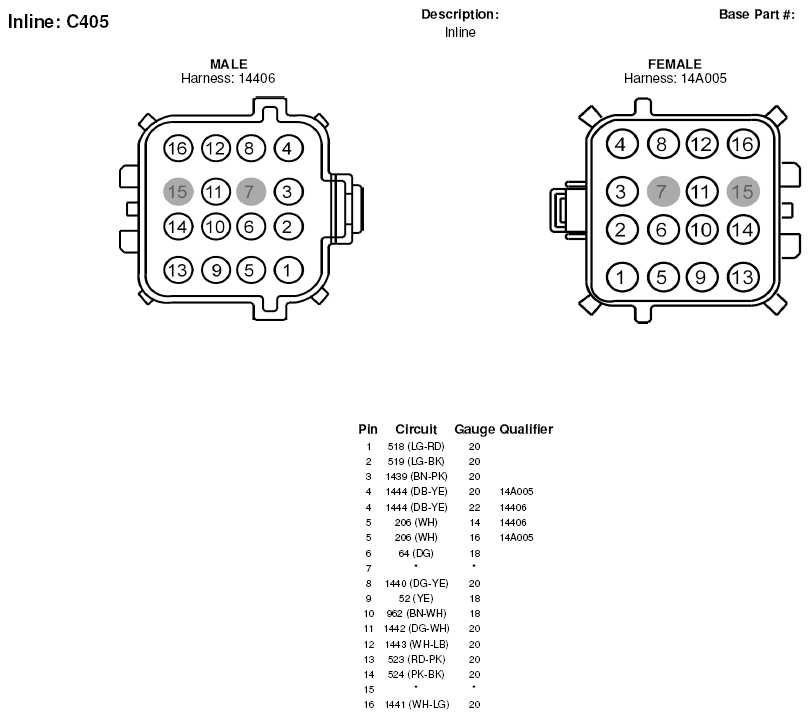

Fig 22: Inline Connector End View (C405)
Courtesy of FORD MOTOR CO.

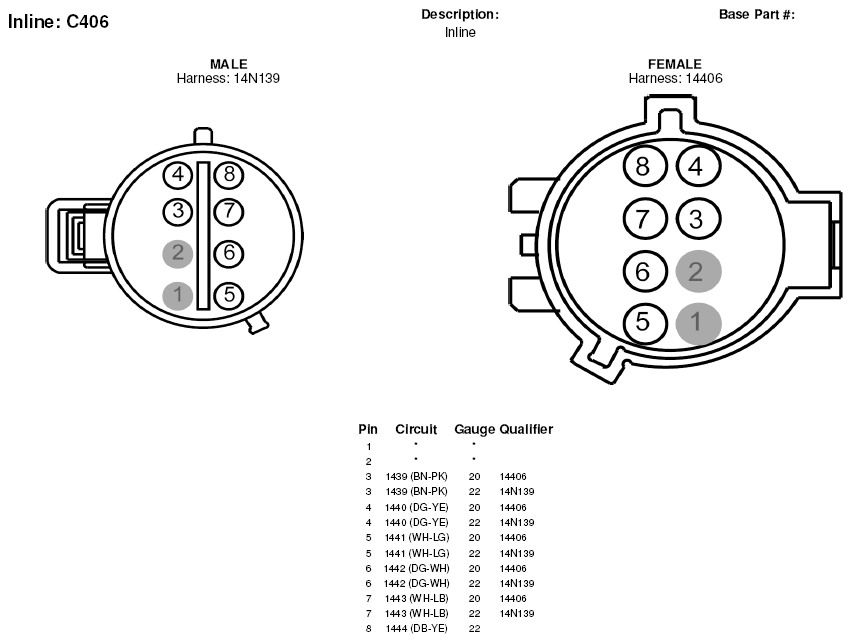

Fig 23: Inline Connector End View (C406)
Courtesy of FORD MOTOR CO.

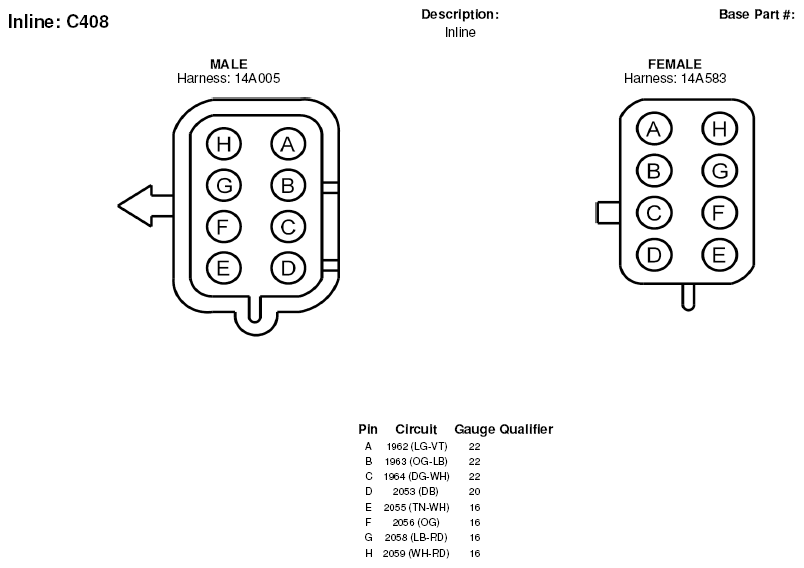

Fig 24: Inline Connector End View (C408)
Courtesy of FORD MOTOR CO.

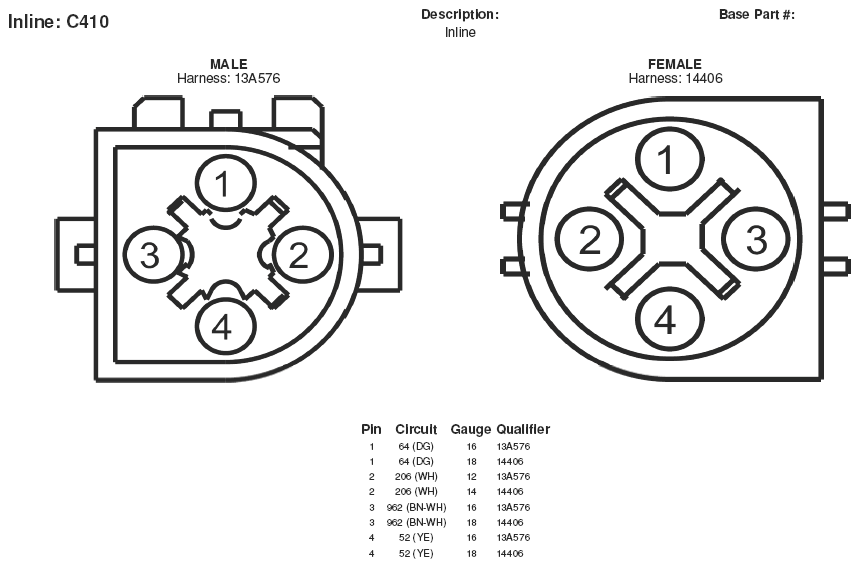

Fig 25: Inline Connector End View (C410)
Courtesy of FORD MOTOR CO.

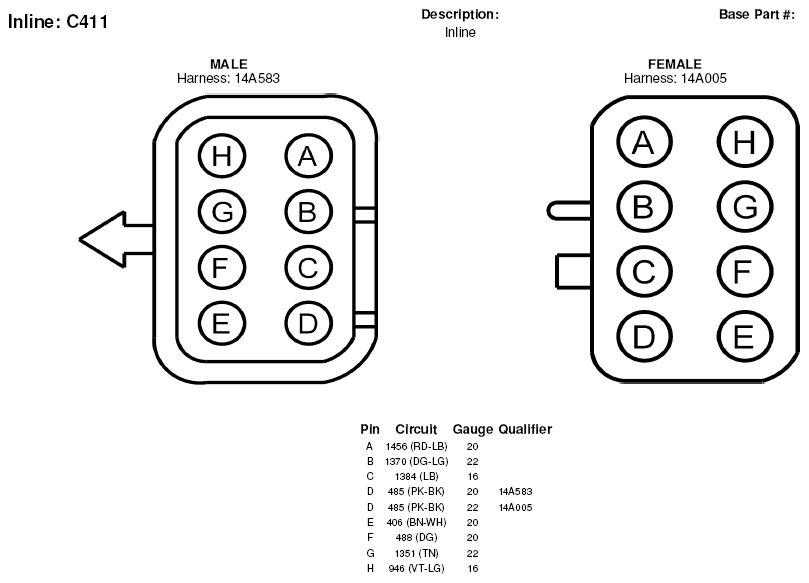

Fig 26: Inline Connector End View (C411)
Courtesy of FORD MOTOR CO.

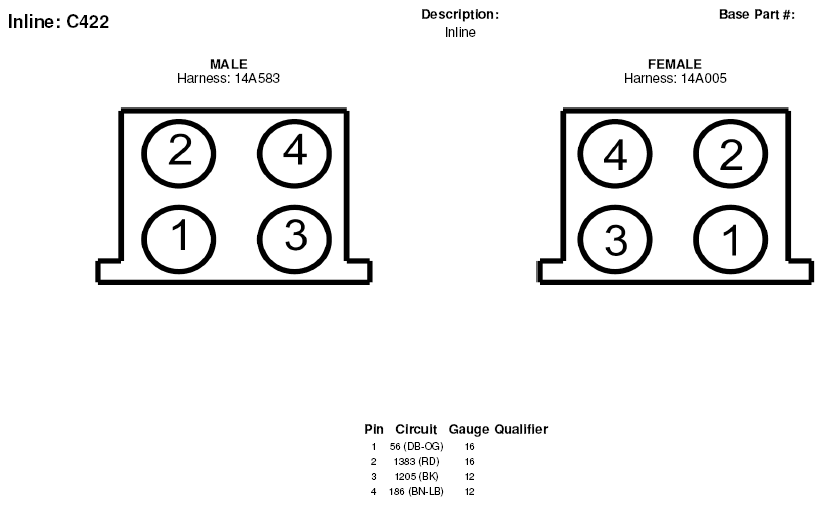

Fig 27: Inline Connector End View (C422)
Courtesy of FORD MOTOR CO.
Fig 28: Inline Connector End View (C700)
Courtesy of FORD MOTOR CO.
Fig 29: Inline Connector End View (C701)
Courtesy of FORD MOTOR CO.

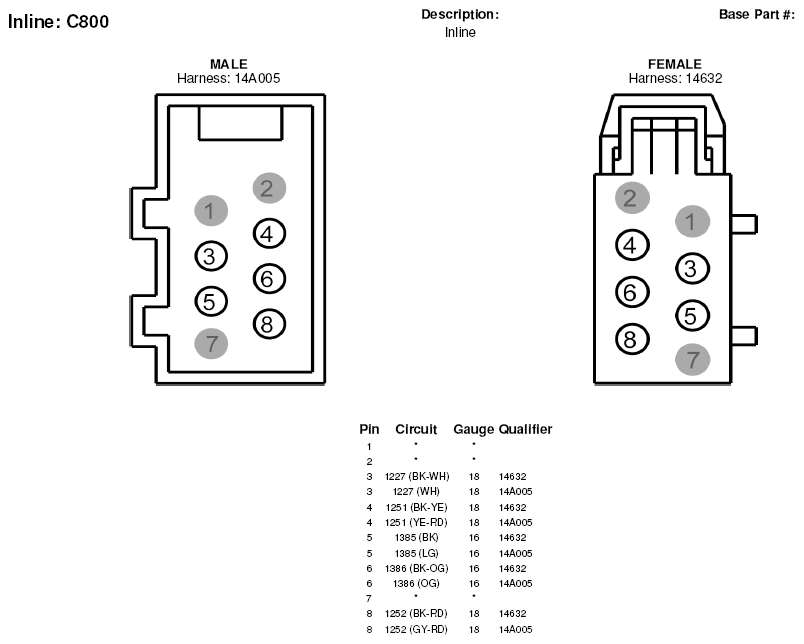

Fig 30: Inline Connector End View (C800)
Courtesy of FORD MOTOR CO.

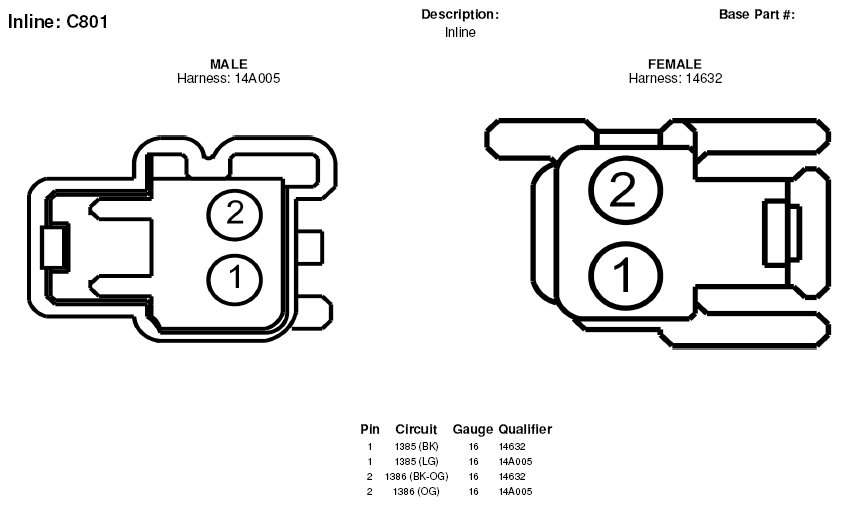

Fig 31: Inline Connector End View (C801)
Courtesy of FORD MOTOR CO.

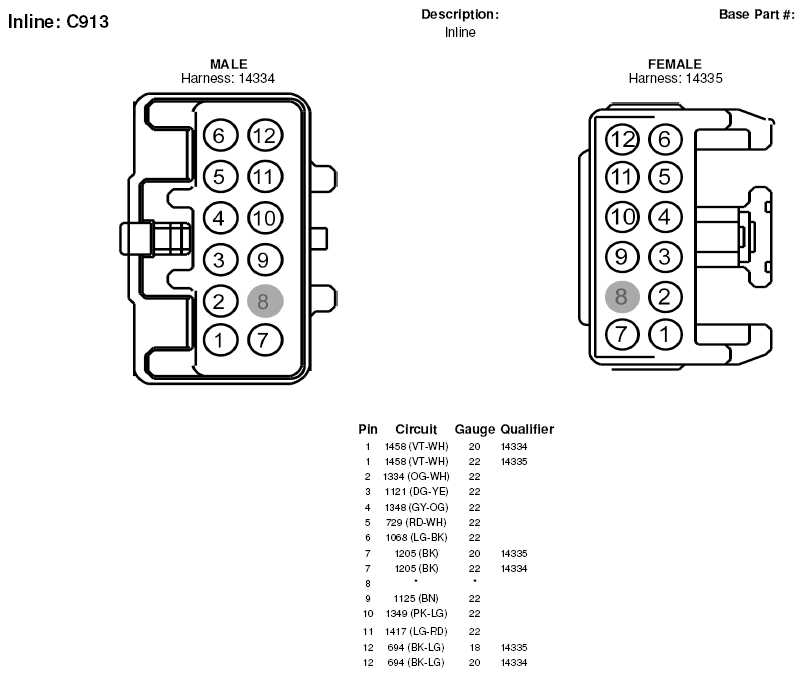

Fig 32: Inline Connector End View (C913)
Courtesy of FORD MOTOR CO.

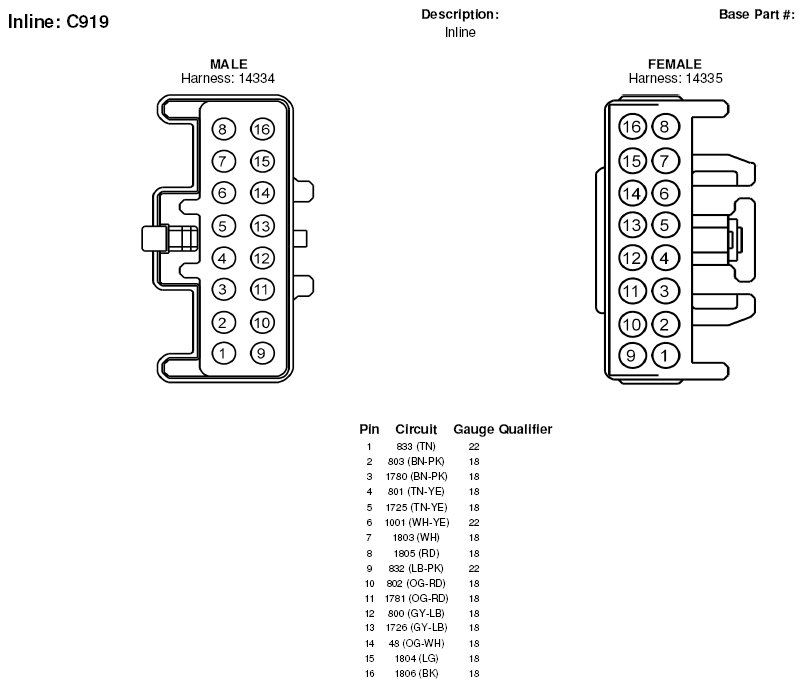

Fig 33: Inline Connector End View (C919)
Courtesy of FORD MOTOR CO.

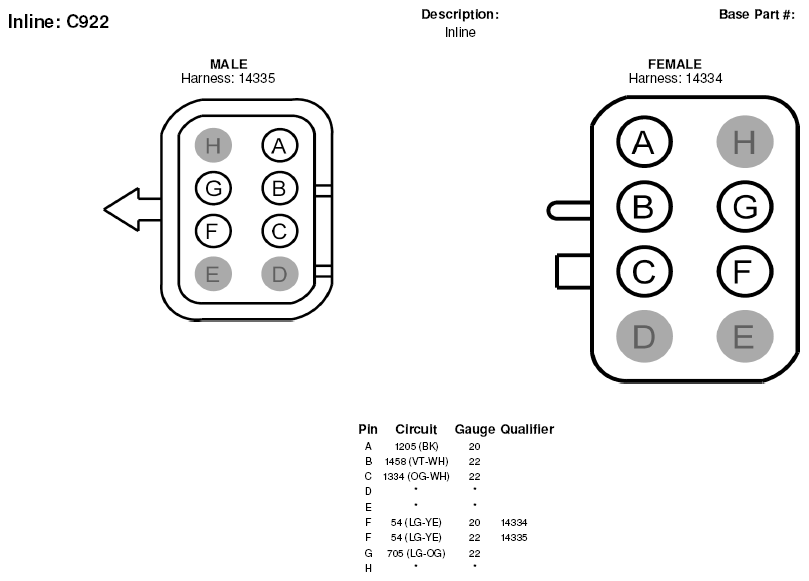

Fig 34: Inline Connector End View (C922)
Courtesy of FORD MOTOR CO.

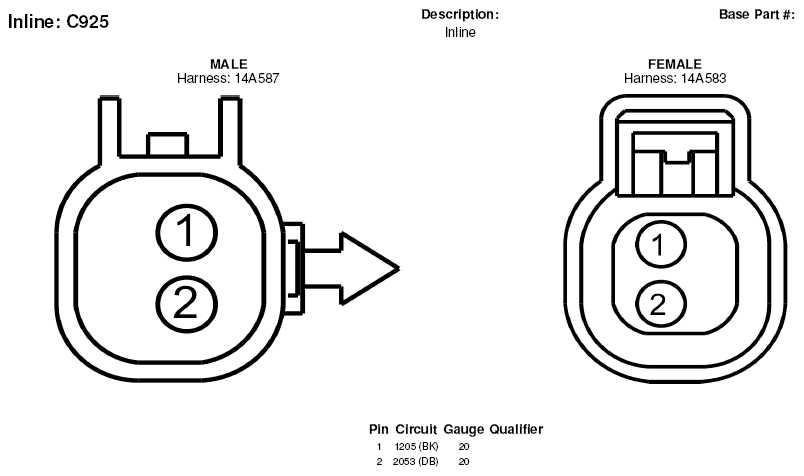

Fig 35: Inline Connector End View (C925)
Courtesy of FORD MOTOR CO.

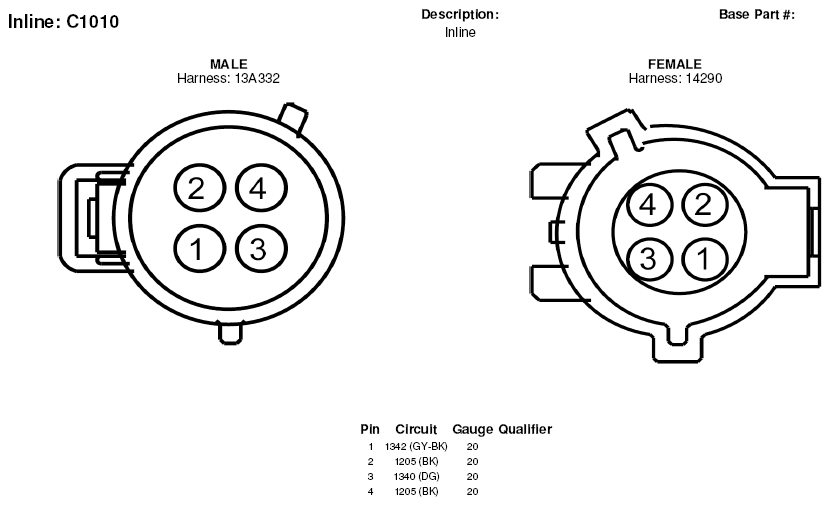

Fig 36: Inline Connector End View (C1010)
Courtesy of FORD MOTOR CO.

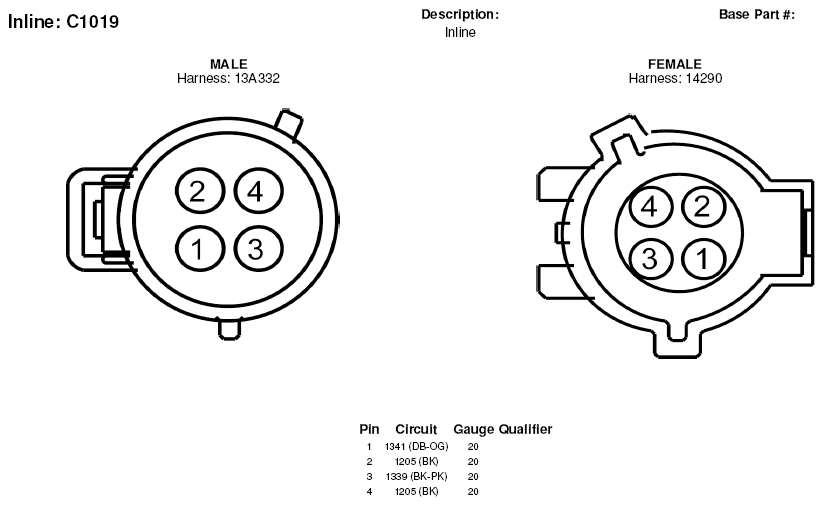

Fig 37: Inline Connector End View (C1019)
Courtesy of FORD MOTOR CO.
